MAZAK OPTONICS OPTIPLEX 3015 IIقاطعات الليزر

بطاقة الهوية
407850
علامة تجارية
السنة
2014
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
10844

الوصف

4000 WATT MAZAK OPTIPLEX 3015 LASER MFG:2014 - 9,000 HOURS SPECIFICATIONS MACHINE STRUCTURE: FLYING OPTICS LASER TYPE: co2 gAS MAXIMUM WORKPIECE DIMENSIONS: 60.039 IN X 120.078 IN MAXIMUM WORKPIECE WEIGHT: 2,050 LBS. MACHINE TRAVELS: x AXIS 122.046 IN y AXIS 62.2 IN z AXIS 4.33 IN WORK TABLE HEIGHT: 35.4 IN AXIAL FEED ACCELERATION x, y, z: 1.2 g MOTION DRIVE SYSTEM DESIGN x, y AXIS: RACK AND PINION DRIVE z AXIS bALL sCREW dRIVE RAPID TRAVEL RATE x, y AXIS: 4,724 IPM z AXIS 2,362 IPM POSITIONING ACCURACY x, y AXIS: 0.002 IN/19.68 IN z AXIS 0.0004 IN/3.94 IN REPEATABLE ACCURACY x, y, z AXIS: 0.0012 IN TOTAL ELECTRICAL REQUIREMENT: 76.0 Kva INSTALLATION DIMENSIONS w X d: 394 IN X 240 IN MACHINE DIMENSIONS w X d X h: 334.21 IN X 137.2 IN X 79.13 IN MACHINE WEIGHT: 36,376 LBS. CONTROL: Mazatrol PREVIEW 3 CPU 64 BIT DISPLAY SCREEN 15 IN COLOR LCD (tft) MEMORY CAPACITY 16 gb (PROGRAMMEMORY CAPACITY: 1 gb) POSITION DETECTION SYSTEM ENCODER MINIMUM COMMAND UNIT 0.0001 IN PROGRAM INPUT SYSTEM eia/iso MAXIMUM MATERIAL THICKNESS * MILD sTEEL 1 IN STAINLESS sTEEL 1/2 IN EQUIPPED WITH WORK PIECE LIFTERS BALL TRANSFERS POWERED CONVEYOR SYSTEM HIGH ACCURACY NOZZLE KIT (8 NOZZLES AND 8 ADAPTERS) ADDITIONAL SERVO FOCUS TORCH ASSEMBLY (5 LENS INCLUDED) ROBOVENT pLASER SERIES pal-2.5m5000-4 DUST cOLLECTOR CHILLER uNIT 2-PALLET cHA

المواصفات

وات
4000 w

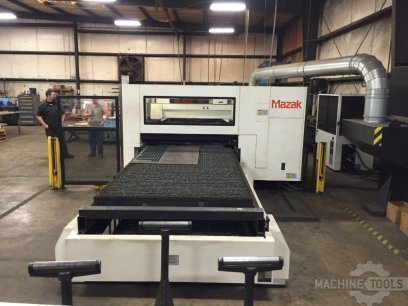

4000 WATT MAZAK OPTIPLEX 3015 LASER
MFG:2014 - 9,000 HOURS

SPECIFICATIONS
MACHINE STRUCTURE: FLYING OPTICS

LASER TYPE: co2 gAS

MAXIMUM WORKPIECE DIMENSIONS: 60.039 IN X 120.078 IN

MAXIMUM WORKPIECE WEIGHT: 2,050 LBS.

MACHINE TRAVELS: x AXIS 122.046 IN

y AXIS 62.2 IN

z AXIS 4.33 IN

WORK TABLE HEIGHT: 35.4 IN

AXIAL FEED ACCELERATION x, y, z: 1.2 g

MOTION DRIVE SYSTEM DESIGN x, y AXIS: RACK AND PINION DRIVE
z AXIS bALL sCREW dRIVE

RAPID TRAVEL RATE x, y AXIS: 4,724 IPM
z AXIS 2,362 IPM

POSITIONING ACCURACY x, y AXIS: 0.002 IN/19.68 IN
z AXIS 0.0004 IN/3.94 IN

REPEATABLE ACCURACY x, y, z AXIS: 0.0012 IN

TOTAL ELECTRICAL REQUIREMENT: 76.0 Kva

INSTALLATION DIMENSIONS w X d: 394 IN X 240 IN

MACHINE DIMENSIONS w X d X h: 334.21 IN X 137.2 IN X 79.13 IN

MACHINE WEIGHT: 36,376 LBS.

CONTROL: Mazatrol PREVIEW 3
CPU 64 BIT
DISPLAY SCREEN 15 IN COLOR LCD (tft)
MEMORY CAPACITY 16 gb (PROGRAMMEMORY CAPACITY: 1 gb)
POSITION DETECTION SYSTEM ENCODER
MINIMUM COMMAND UNIT 0.0001 IN
PROGRAM INPUT SYSTEM eia/iso

MAXIMUM MATERIAL THICKNESS *
MILD sTEEL 1 IN
STAINLESS sTEEL 1/2 IN

EQUIPPED WITH
WORK PIECE LIFTERS BALL TRANSFERS
POWERED CONVEYOR SYSTEM
HIGH ACCURACY NOZZLE KIT (8 NOZZLES AND 8 ADAPTERS)
ADDITIONAL SERVO FOCUS TORCH ASSEMBLY (5 LENS INCLUDED)
ROBOVENT pLASER SERIES pal-2.5m5000-4 DUST cOLLECTOR
CHILLER uNIT
2-PALLET cHANGER
