WABASH DA250-30-CLXمكابس صب

بطاقة الهوية
408150
علامة تجارية
موديل
النوع
حالة
تستخدم - ممتاز
السنة
2008
الموقع
Illinois
الولايات المتحدة الامريكية

الوصف

250 Ton, Wabash, 4 Post, 10" str., (2) 30" x 30" hot plates, Allen Bradley PLC, new in 2008, #27422.

المواصفات

تحويل المواصفات للمتري
حمولة
250 T
المشوار
10 "

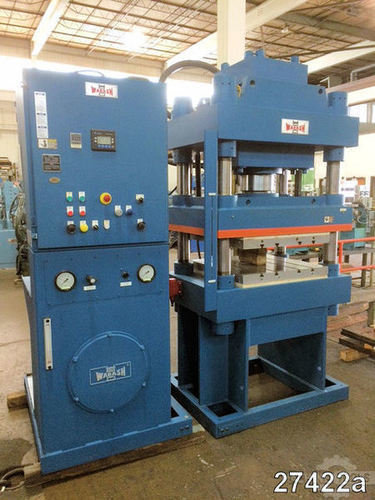

250 TON WABASH HYDRAULIC MOLDING & LAMINATING PRESS
Mfd. 2008
Model DA250-30-CLX
4 post downstroke type
Floor standing
Distance between 4" dia. posts: 34" L-R x 19" F-B
Platen area (nominal): 30" L-R x 30" F-B
Overall dimensions of platen: 47" L-R x 32" F-B
Stroke of fully guided slide: 0 - 10" maximum
Daylight opening (total): 16.5" maximum
Daylight opening between hot
plates (1): 10" maximum
Hot plates (2): 30" L-R x 30" F-B x 2.25" thick
(T-slotted) (Cored for water, steam,
or hot oil heating)
Insulation (2): 30" L-R x 30" F-B x 1" thick
Main ram diameter (1): 16"/10" @ 2490 PSI - 250 tons
Floor to top of bed: 39"
Power unit (free standing): Submerged hydraulic pump, driven by
15 HP 1760 RPM 230/460/3/60 motor
Controls: Pushbutton operation w/stroke &
pressure control
Dual palm buttons
Selector switch for manual or
semi-automatic operation
Digital temperature indicator
Safety slide lock
Allen Bradley PLC
Low and high pressure gauges
Weight approx. 15,500 lbs. - press
1,600 lbs. - power unit
Overall dimensions approx. 50" L-R x 51" F-B x 102" H - press
36" L-R x 48" F-B x 87" H - power unit
Serial no. 10994
Stock no. 27422
FOB ELK GROVE VILLAGE, IL
