PEDDINGHAUS FPB 500/3Eالبلازما كومبو اللكمات

بطاقة الهوية
408815
علامة تجارية
موديل
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
رقم المخزن
17105
الثمن

المواصفات

تحويل المواصفات للمتري
حمولة
177 T
CNC تحكم
CNC (Fagor CNC Control)

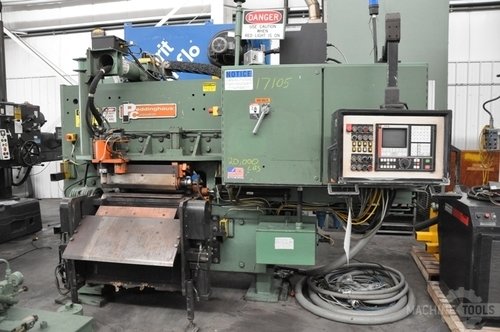

PEDDINGHAUS CNC PLATE PUNCH & PLASMA CUTTER
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $45,000.00

HMC Stock No. 17105
Machine Serial No. 39395
Machine Model No. FPB-500/3E
New Date: 2001

3-Station Punch
Plasma Torch with Hypertherm 2000 Power Supply,
Serial No. 2000-005876, Model No. HT2000
Machine Mechanical Rebuild in 2013 with the Following Items:
New Punch Cylinder Complete
New Rails & Bearings on Y-Axis
New Y-Axis Ball Screw
Triple Tooling Complete
New X-Axis Servo Motor
Punching Tonnage: 177 Tons
Punch Styles: 272 & 292
Die Styles: 271 & 291
Minimum Material Thickness Processed: .125"
Maximum Material Thickness Processed: 1"
Minimum Material Width: 2"
Maximum Material Width: 20.8"

EQUIPPED WITH:
Fagor 8020 CNC Control with Peddimat Software
(3) Sections of Powered Infeed Conveyor; Each Section is
10' L with 21" Wide Rolls, 3-1/2" Dia. on 11-1/2" Centers
& Has Side Guide Rolls on 12" Centers
(1) Section of Powered Outfeed Conveyor, 10' L with 21" Wide
Rolls on 11-1/2" Centers & Has Side Guide Rolls on 12" Centers
Torit Dust Collector, Serial No. IG664458-001, Model No. DFT2-8
5 HP Motor, Wired 3 Phase, 60 Cycle, 208-460 Volts, 3450 RPM
(4) Cartridge Type Filters
Magnehelic Gauge & Air Pulse Filter Cleaning
(3) Light Curtains
Slag Collection Hopper
25 HP Hydraulic System, Wired 3 Phase, 60 Cycle, 208-230-460 Volts

DIMENSIONS:
Overall Main Machine: 12' L x 9' W x 110" H x 20,000 Lbs.
Each Section of Motorized Conveyor: 10' L x 30" W x 42" H
Hypertherm Plasma Unit: 44" L x 28" W x 38" H
Hydraulic System: 5-1/2' L x 42" W x 44" H
Dust Collector: 7-1/2' L x 5-1/2' W x 128" H Standing Up
Slag Collection Hopper: 36" L x 30" W x 28" H
