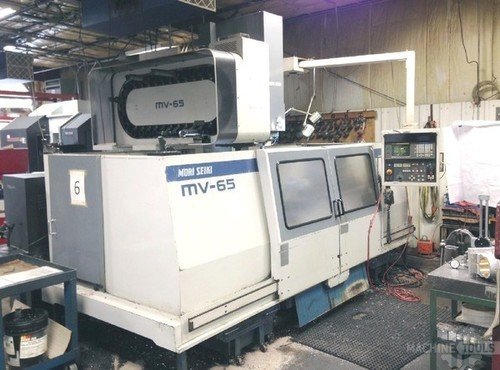

MORI SEIKI MV-65B50مراكز التجهيز العمودي (5 محور أو أكثر)

بطاقة الهوية
409020
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
1995
الموقع
Wisconsin
الولايات المتحدة الامريكية

الوصف

Mori Seiki MV-65 B 50 Taper CNC Vertical Machining Center Mill, 67" table, cat ---------------- TABLE SIZE 67" x 26" MAXIMUM TABLE LOAD 4,400 LBS SPINDLE NOSE TO TABLE TOP 7.9" - 33.5" X AXIS TRAVEL 60.0" Y AXIS TRAVEL 25.6" Z AXIS TRAVEL 25.6" RAPID TRAVERSE RATE X & Y & Z AXES 590 IPM SPINDLE TAPER CAT 50 SPINDLE SPEEDS (2 SPEED GEAR BOX) 4,000 RPM TOOL CHANGER CAPACITY 30 STATION ATC SPINDLE MOTOR 20 HP TOOL CHANGE TIME (TOOL TO TOOL) 2/3 SECONDS MAXIMUM TOOL WEIGHT 44 LBS WEIGHT, APPROX. 34,200 LBS DIMENSIONS, APPROX. 172"L x 128"W x 125"H MFG DATE 1995 EQUIPPED WITH: FANUC MF-M6 (16M) CNC CONTROL, RS-232C PORT INTERFACE FOR DNC OPERATION, CIRCULAR/HELICAL INTERPOLATION CW & CCW, RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING), REMOTE PULSE GENERATOR, SPINDLE CHILLER, SPINDLE AIR-BLAST SYSTEM, SIDE MOUNT 30 STATION SWING ARM ATC, CHIP WASH DOWN w/TABLE CHIP SWEEPERS, COOLANT SYSTEM WITH TANK & PUMP, FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS ***RIGID BOX WAY DESIGN*** ****VIDEO AVAILABLE UPON REQUEST**** LOCATION: OUR WAREHOUSE; UNDER POWER, FRANKSVILLE, WI (NEAR MILWAUKEE, WI) see more at: www.mwmachinery.com

المواصفات

تحويل المواصفات للمتري
X
60 "
Y
25.6 "
Z
26 "
القدرة
25 hp
RPM
4000 rpm
# ATC
30
انحناء
Cat 50
الوزن
35000 lbs.
CNC تحكم
CNC (FANUC MF-M6)

TABLE SIZE 67" x 26"
MAXIMUM TABLE LOAD 4,400 LBS
SPINDLE NOSE TO TABLE TOP 7.9" - 33.5"
X AXIS TRAVEL 60.0"
Y AXIS TRAVEL 25.6"
Z AXIS TRAVEL 25.6"
RAPID TRAVERSE RATE X & Y & Z AXES 590 IPM
SPINDLE TAPER CAT 50
SPINDLE SPEEDS (2 SPEED GEAR BOX) 4,000 RPM
TOOL CHANGER CAPACITY 30 STATION ATC
SPINDLE MOTOR 20 HP
TOOL CHANGE TIME (TOOL TO TOOL) 2/3 SECONDS
MAXIMUM TOOL WEIGHT 44 LBS
WEIGHT, APPROX. 34,200 LBS
DIMENSIONS, APPROX. 172"L x 128"W x 125"H
MFG DATE 1995

EQUIPPED WITH:
FANUC MF-M6 (16M) CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
CIRCULAR/HELICAL INTERPOLATION CW & CCW,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
REMOTE PULSE GENERATOR, SPINDLE CHILLER,
SPINDLE AIR-BLAST SYSTEM,
SIDE MOUNT 30 STATION SWING ARM ATC,
CHIP WASH DOWN w/TABLE CHIP SWEEPERS,
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED SPLASH GUARDING,
ALL AVAILABLE MANUALS
***RIGID BOX WAY DESIGN***
****VIDEO AVAILABLE UPON REQUEST****

LOCATION: OUR WAREHOUSE; UNDER POWER, FRANKSVILLE, WI (NEAR MILWAUKEE, WI) see more at: www.mwmachinery.com
