MASCO BRIDGEMAXالعملاقة الآلات مراكز (incld. بريدج وعمود مزدوج)

بطاقة الهوية
409049
علامة تجارية
موديل
السنة
2001
الموقع
Arizona
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
الثمن

المواصفات

تحويل المواصفات للمتري
X
185 "
Y
100 "
Z
50 "
القدرة
35 hp
RPM
3750 rpm
الجدول-W
72 "
الجدول-L
120 "
انحناء
50
الوزن
110,000 Lbs
CNC تحكم
CNC (Fanuc 16i)

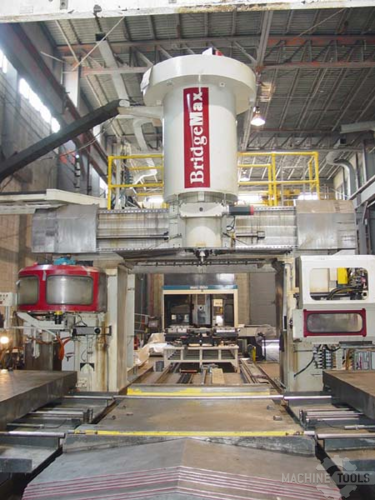

2001 MASCO 5 Axis Bridgemill CNC machining center
Model: Bridgemax
2001 MASCO double column modular VTL/VNC combination CNC machining center.
5-Axis heavy duty bridge mill

EQUIPPED WITH:
Fanuc 16i CNC Control
RS-232 Port
Multiple Part Program Storage
Self Diagnostics
Automatic Pallet Changer with (2) 72" x 120" Pallets
Heavy Duty Geared Spindle with Cat-50 Taper
Automatic Head Changer with Right Angle Head
C-Axis Head Rotation for 5-Sided Machining
28 Station Automatic Tool Changer that Services the Vertical Spindle
24 Station Automatic Tool Changer that Services the Horizontal Right Angle Head

Heavy Duty Bridge Style Design
2 Range Geared Spindle
Manual Pulse Generator
Axis Error Compensation
Cutter Compensation
Full Enclosure
Thru Spindle Coolant System and Chip Conveyor.

CATALOGUE SPECIFICATIONS:
Pallet Working Surface: 72" x 120"
Table Load Capacity: 22,000 lbs
Longitudinal Travel (X-Axis): 185"
Cross Travel (Y-Axis): 100"
Vertical Travel (Z-Axis): 50"
Spindle Nose to Table: 10" - 60"
Distance Between Columns: 110" Rapid
Traverse Rate (X & Y-Axes): 800 IPM
Rapid Traverse Rate (Z-Axis): 400 IPM
Tool Storage Capacity (28 Vertical, 24 Horizontal): 52
Spindle Horsepower: 35 HP
Spindle Speeds Low Range: 5 - 1000 RPM
Spindle Speed High Range: 750 - 3750 RPM
Spindle Taper: #50 CAT
Electrics: 460/3/60
Approx. Machine Dims: 48'3" x 28'2"
Approx. Machine Height: 30ft

Approximate Machine Weight: 110,000 lbs (4x TRUCKLOADS because of space requirements)
