AMADA APELIO III 357Vالليزر كومبو اللكمات

بطاقة الهوية
409477
علامة تجارية
موديل
السنة
1997
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
10883

المواصفات

تحويل المواصفات للمتري
حمولة
33 T
محطة تارت#
58
وات
2,000 W
الوزن
30000 (LBS)
CNC تحكم
CNC (FANUC 16L)

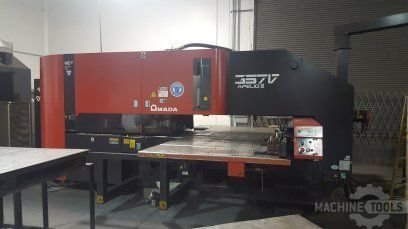

33 TON AMADA APELIO III 357V HYDRAULIC TURRET PUNCH/LASER COMBINATION
MACHINE W/FANUC 16-L CNC CONTROL & 1500 WATT FANUC LASER
MFG:1997 - APPROX:48,500 HRS. - NEW TURBO BLOWER INSTALLED APRIL 2017

System Specifications

Motion Package:Apelio III 357V - 50" x 72" Table
Punching System: 33 Ton, Hydraulic Ram
Laser Oscillator: Fanuc Model AF1500
CNC Controller: Fanuc 16-L
Chiller/Cooler Koolant Kooler Model HCV10000PRNF or equivalent
Dust Collector Torrit Model SDF - 6 or equivalent

1.1 Motion Package
Travel Method X and Y axes work piece movement
Control Method X, Y, Z, T, B & C Simultaneous 3 axis control
Drive Motors Fanuc AC Servo (X, Y, Z, T, B, C)
Maximum Sheet Size 50" (Y) x 144" (X) with one repositioning cycle
Maximum Axis Travel 50" (Y) x 72" (X) 11.8" (Z)
Max. Cutting Speed (laser) 590"/min.
Max. Linear Table Speed 2560"/min (x), 1968"/min (y).
Max. Speed - Z-Axis 472"/min.
Positioning Accuracy 0.002"/39.37"
Punching Accuracy 0.004"
Repeatability 0.0004"
Maximum Work Thickness
0.250" Carbon Steel
0.187" Clean Cut Stainless
0.250" Clean Cut Stainless with high pressure assist gas 0.125" Stainless

(punch) 0.187" Aluminum

1.2 Punching System

Press Capacity 33 Tons
Press Stroke 1.575"
Press Speed 220 SPM (0.315" stroke, 0.315" move)
Hit Rate (1" move) 180 HPM (0.315" stroke, 1" move)
Maximum Hole Diameter 4.5"
Tool Type Amada Thick Turret
Turret Rotation Speed 30 RPM
Turret Capacity 58 Stations (2 auto-index)
Turret Specification
36 - " stations (12)
12 - 1" stations (12 keyed)
4 - 2" stations (2 keyed)
2 - 3" stations (2 keyed)
2 - 4" stations (2 keyed)
2 - 1" auto-index stations

1.4 CNC Controller
Model 16-L Control (Fanuc)
