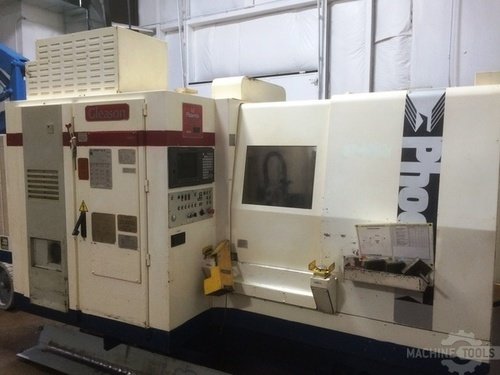

GLEASON 450HCمولدات والعتاد شطبة

بطاقة الهوية
410247
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
1998
الموقع
Connecticut
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
13109
Pic1
صور ( 9 )

التنزيلات

GLEASON 450HC (2 MB )

بطاقة الهوية
410247
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
1998
الموقع
Connecticut
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
13109

الوصف

• Machine furnished with machine mounted, air-conditioned, electrical enclosure, operator’s controls located at front of machine, adjacent to powered access door. • FANUC Model 150MB computer control with spiral bevel gear cutting software and automatic set-up, with 10.4” LCD flat color display. Work Spindle (A) Swinging Base (B) Cutter Spindle (C) Horizontal (X) Vertical (Y) Sliding Base (Z) • Summary storage capacity for 100 parts • Security key for control of setup • Cycle fault monitoring • Totally enclosed work-area guarding with powered access door • Coolant tank, pump & piping • Magnetic chip conveyor • Hydraulic work piece chuck with draw-rod • Manual stock dividing • Flooded suction-type hydraulic unit • Work spindle bore 5-3/64” (#50 taper) with adapter to 3-29/32” (#39 taper) • Work chamber lighting • Production and sharpen-cutter count display • Power forced lubrication system • Full complement of electrics (motors/controls) electrical and hydraulic controls to NFPA 79-1991 specifications (460 Volt, 60 HZ or 380 Volt, 50 HZ) • Full machine documentation for machine and controller, wiring & hydraulic diagrams

المواصفات

تحويل المواصفات للمتري
أقصى قطر للترس
17.7 "
نوع
Wet
الأبعاد
172" x 134" x 100"
الوزن
22,000
CNC تحكم
CNC (FANUC Model 150MB)

PRINCIPAL SPECIFICATIONS:
( face milling )

Extreme ratio: 10:1
Full depth (Maximum): 1.00" (25.40 mm)
Face width (Maximum): 2.60" (66 mm)

( face hobbing )

Extreme ratio: 10:1
Full depth (Maximum): 0.60" (15.24 mm)
Face width (Maximum): 2.00" (50.80 mm)

Range of tooth numbers: 5-200 inclusive (face milling). 5-200 inclusive (face hobbing).

Maximum gear pitch diameter of typical 35°
spiral angle gear using maximum cutter diameter:
12” Diameter Cutter (face milling)
210mm Diameter Cutter (face hobbing)
at the following ratios:

(face milling):
1 X 1....13.5” (342.9mm)
2 x 1....16.0” (406.4mm)
5 x 1....17.7 (450mm)

(face hobbing)

10.560” (268.22mm)
10.826” (275.00mm)
11.810” (300.00mm)

(cutter diameters utilized)

Conventional face sharpened & RSR-C:
2.75, 3.5” (100mm,125mm) face milling
(102mm, 128mm) face hobbing

HELIXACT and VERSACUT II:
4.5”, 6” (160mm, 200mm) face milling
(132mm, 176mm) face hobbing

TRI-AC:
7.5”, 9”, 10.5”, 12” (250mm, 320mm) face milling
(210mm) face hobbing

Machine Specifications:

X-Horizontal:
-4.50” to 7.00” face milling
-114mm -178mm face hobbing

Y-Vertical travel:
-7.00” to 7.50” face milling
-178mm -190mm face hobbing

Z-sliding base travel:
-.40” to 19.70” face milling
-10.16mm- 500mm face hobbing

B-Root angle:
-3° to 90° face milling
-3° to 90°) face hobbing

Machine center to work spindle face:
6.50” face milling
165mm face hobbing

Work-spindle dimensions:

Diameter of taper hold – large end 5-3/64” (#50 taper) face milling.
Taper per foot - 21/32” face milling
Depth of taper - 5.29” face milling, 134.37mm face hobbing.
Diameter of hole through spindle - 3.35” face milling, 85.22mm face hobbing.

Floor Space:

Length x Width (172" x 134") 4380mm x 3400mm
Height (without crane) 100" (254cm)
Weight - 22,000 lbs
