DCM/WILSON PDG-5-3/490960أداة وكتر المطاحن

بطاقة الهوية
410470
علامة تجارية
DCM/WILSON
موديل
PDG-5-3/490960
السنة
2006
الموقع
الولايات المتحدة الامريكية
رقم المخزن
9254
Bg 9254
صور ( 4 )
بطاقة الهوية
410470
علامة تجارية
DCM/WILSON
موديل
PDG-5-3/490960
السنة
2006
الموقع
الولايات المتحدة الامريكية
رقم المخزن
9254

الوصف

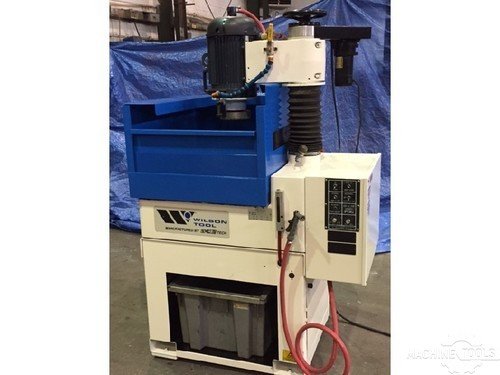

DCM Automatic Tool Grinder

المواصفات

EQUIPPED WITH
5 hp spindle motor that easily handles large dies.

CBN grinding wheel provides aggressive material removal rates and
a high quality surface finish. Self-dressing CBN straight wheel.

Dual coolant application Coolant is supplied both externally and through
the spindle for maximum heat removal while grinding.

15 gallon recirculating coolant system.

Regrind punches up to 10º angle.
The punch fixturing allows sharpening of rooftop and straight angle shear punches with angles up to 10º.

Simple fixturing design allows quick, easy loading and unloading of parts and accurate,
repeatable process control.

Autofeed frees up the operator to perform other duties during the grinding process
and allows for accurate cut depths.

A standard heavy-duty three-jaw chuck will accommodate all punches and
dies up to 6 [152mm] diameter.

An optional magnetic chuck is available for purchase to accommodate items that cannot be secured in the
three-jaw chuck.

Small footprint:40" x 48" [101 x 122cm] footprint requires minimal floor space.

Rigid, heavy-duty 18" [45.7cm] diameter rotary table eliminates any chance for the chatter commoon with smaller tables.


SPECIFICATIONS
DCM TECH / WILSON TOOL: PDG-5-3-490960
