BROWN & SHARPE 1236 MICROMASTERالمطاحن سطح الترددية

بطاقة الهوية
411097
علامة تجارية
السنة
1968
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
156475

الوصف

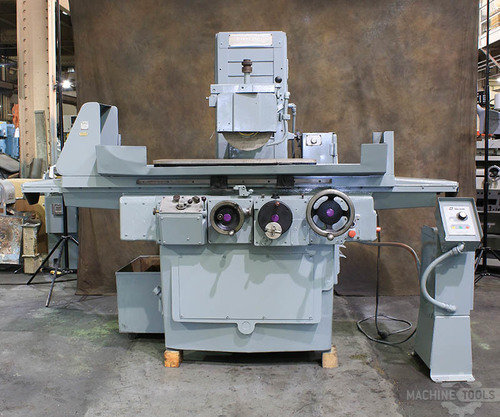

12" Width 36" Length Brown & Sharpe 1236 MICROMASTER SURFACE GRINDER, AUTO IDF, 3X AUTO FEEDS, FINE-DIV. EMC, COOLANT

المواصفات

تحويل المواصفات للمتري
الجدول-W
12 "
الجدول-L
36 "

12" X 36" BROWN & SHARPE HYDRAULIC SURFACE GRINDER          W/AUTOMATIC INCREMENTAL DOWNFEED MODEL: #1236 MICROMASTER   S/N: 523-1236-164    NEW: 1968   SPECIFICATIONS:WORKTABLE SIZE.................................... 12" X 36" GRINDS WORK TO HEIGHT OF.......................... 18" (W/12" WHEEL) WHEEL SIZE ....................................... 12" DIA. LONGITUDINAL TABLE TRAVEL ........................ 41"CROSS TRAVEL ..................................... 14"VERTICAL TRAVEL .................................. 19- 1/4"LONGITUDINAL TABLE SPEED ......................... 10' - 90' FPM AUTO CROSSFEED PER TABLE REVERSAL ................ 0.010 - .500" POWER WHEEL TRUING ............................... 10" IPM CROSS HANDWHEEL, GRAD. ........................... 0.0002" FINE FEED KNOB, CROSSFEED, GRAD. ................. 0.0001"RAPID TRAVERSE POSITIONING........................ 150 IPM AUTO INCREMENTAL DOWNFEED ........................ 0.003" TO .0001"RAPID VERTICAL POWER POSITIONING.................. 40 IPM VERTICAL HANDWHEEL, GRAD. ........................ 0.0002" APPROX. MACHINE WEIGHT ........................... 6,000 LBS    EQUIPPED WITH:AUTOMATIC INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD AT EACH REVERSAL OF COLUMN FOR SURFACE GRINDING OR AT EACH REVERSAL OF TABLE FOR PLUNGE, FACE OR SLOT GRINDINGHYDRAULICALLY ACTUATED LONGITUDINAL FEEDCOLUMN TYPE DESIGN: CROSS FEED IS ACHIEVED BY HYDRAULICALLY  ACTUATED MOVEMENT OF GRINDING COLUMNMOTORIZED POWER RAPID TRAVERSE OF GRINDING WHEELHEAD UP AND  DOWN FOR POSITIONINGAUTOMATIC CROSS FEED REVERSING ARRANGEMENT12" X 36" "FINE-DIVISION" ELECTROMAGNETIC CHUCK   WITH "ELECTRO-MATIC" VARIABLE HOLD NEUTROFIER CONTROL(1) GRINDING WHEEL MOUNTEXTERNAL COOLANT PUMP AND TANK1/4 HP VERTICAL POWER RAPID TRAVERSE DRIVE MOTOR 2 HP 3/60/240-480 VOLT HYDRAULIC PUMP MOTOR WITH   FAN DRIVEN OIL COOLER5 HP 3/60/240-480 VOLT DIRECT DRIVE SPINDLE DRIVE MOTORMACHINE IS WIRED FOR 440 VOLTS  ** EXCELLENT CONDITION, PURPLE PAINT! **** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
