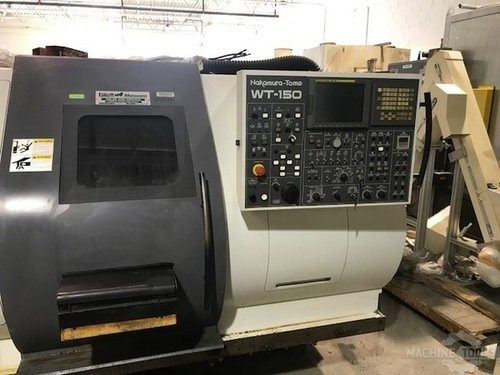

NAKAMURA-TOME WT-150مخارط CNC

بطاقة الهوية
411368
علامة تجارية
موديل
النوع
حالة
تستخدم - ممتاز
السنة
2005
الموقع
Michigan
الولايات المتحدة الامريكية
الثمن
Img 2545
صور ( 10 )
بطاقة الهوية
411368
علامة تجارية
موديل
النوع
حالة
تستخدم - ممتاز
السنة
2005
الموقع
Michigan
الولايات المتحدة الامريكية
الثمن

الوصف

AVAILABLE FOR INSPECTION AT OUR SECOND WAREHOUSE IN IMLAY CITY, MICHIGAN. EMAIL: mike@bbstorage.net PHONE: mike: 586-255-2666 Tyler: 586-255-6697

المواصفات

تحويل المواصفات للمتري
حجم الظرف
6 "
سعة العامود
2 "
القدرة
20 hp
ماكس RPM
5000 rpm
قطر الخراطة
12.2 "
الأرجحة
12.2 "
بالقطع طول
21.85 "
غراب
No
الأدوات الحية
Yes
الفرعية المغزل
Yes
الأبعاد
137 x 90 x 80
الوزن
19000
CNC تحكم
CNC (Fanuc 18i-TB)

SPECIFICATIONS:

1-USED NAKAMUA TOME WT150 CNC MULTI AXIS TURNING CENTER

APPROX. DATE OF MFG. 2005
STK# 103480
==============================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

*CAPACITY
MAX TURNING DIAMETER 7.480"
STANDARD TURNING DIAMETER 6.692"
DISTANCE BETWEEN CENTERS MAX 29.52" MIN 7.874"
MAX TURNING LENGTH 19.803"
BAR CAPACITY 2.007"
CHUCK SIZE 6"

*AXIS TRAVEL
SLIDE TRAVEL X1/X2 6.2007"/6.594"
SLIDE TRAVEL Z1/Z2 18.307" EACH
SLIDE TRAVEL Y +/- 1.377"
SLIDE TRAVEL B 21.653"
RAPID FEED X1/X2 16M/MIN
RAPID FEED Z1/Z2 40M/MIN
RAPID FEED B AXIS 40M/MIN
RAPID FEED Y AXIS 6M/MIN

*LEFT AND RIGHT SPINDLES
SPINDLE SPEEDS 5,000 RPM
SPINDLE NOSE A2-5
HOLE THROUGH SPINDLE 2.480"
HOLE THROUGH DRAW TUBE 2.047"

*C AXIS
LEAST INCREMENT INPUT 0.001 DEGREES
LEAST COMMAND INCREMENT 0.001 DEGREES
RAPID INDEX SPEED 600 RPM
CUTTING FEED RATE 1 TO 4800 RPM
C AXIS CLAMP DISK CLAMP
C AXIS ENGAGE TIME 1.5 SEC

*UPPER AND LOWER TURRETS
TYPE OF TURRET HEAD DODECAGONAL DRUM TURRET X 2
NUMBER OF TOOL STATIONS 12 STATIONS X 2
NUMBER OF INDEXING POSITIONS 24 X 2
TOOL SIZE SQUARE SHANK 1"
TOOL SIZE ROUND SHANK 1.259"

*DRIVEN TOOLS
ROTARY SYSTEM INDIVIDUAL ROTATION
SPINDLE SPEED TO 6000 RPM
SPINDLE SPEED RANGE STEPLESS
NUMBER OF DRIVEN TOOL STATIONS 12 X 2
TOOL SHANK STRAIGHT HOLDER 1MM TO 16MM
TOOL SHANK CROSS HOLDER 1MM TO 16MM

*DRIVE MOTOR POWER AND TORQUE
LEFT SPINDLE 15/11 KW 113.4/83.1 N.M
RIGHT SPINDLE 11/7.5 KW 83.1/56.7 N.M
DRIVEN TOOLS 5.5/3.7 KW 24/16 N.M X 2

*GENERAL
MACHINE HEIGHT 73.22"
FLOOR 124.322" X 78.14"
MACHINE WEIGHT 19,580 LBS

*POWER SOURCE
POWER SUPPLY 67.2 KVA

EQUIPPED WITH:
FANUC 18iTB CONTROL

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
