KIRBY UNIVERSAL CNCالمطاحن تبختر

بطاقة الهوية
412536
علامة تجارية
KIRBY
موديل
UNIVERSAL CNC
حالة
تستخدم - ممتاز
السنة
1990
الموقع
Victoria
استراليا
عودة السياسة
كما هو
الثمن

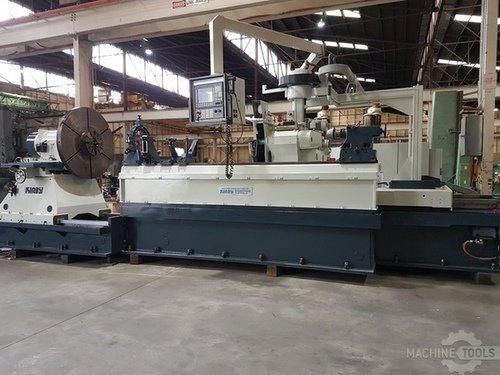

Strut grinder 1
صور ( 3 )
بطاقة الهوية
412536
علامة تجارية
KIRBY
موديل
UNIVERSAL CNC
حالة
تستخدم - ممتاز
السنة
1990
الموقع
Victoria
استراليا
عودة السياسة
كما هو
الثمن

الوصف

The machine was built in 1990. The Siemens CNC control was upgraded in 2005. This machine was previously re-grinding Struts at the Royal Australian Air Force facility, and has had very little use. It comes with all guards and work platform. The machine can be seen running. Our Australian division can dismantle and arrange shipping to any major port. Our office in Oklahoma (Megabore Machinery) can assist with arrangements if required. Australian contact is Steve Davies for more details sales@espmach.com.au

المواصفات

الأبعاد
Length 397 ins. Width 244 ins x 144 Ins high.
الوزن
40 tons
CNC تحكم
CNC (Siemens upgraded in 2005)

Swing in gap 2500 mm (98 inch) x 1000 mm (40 inch) gap length.
Note: Grinding gap length and swing in gap can be extended / raised if required.

Maximum distance between centres 4600 mm (180 inch)

External grinding 805 mm (31.6 inch) Dia x 2440 mm (96 inch) length.

Internal grinding to 1120 mm (44 inch) x 230 mm (9 inch).
Internal grinding to 1170 mm (46 inch) x 130 mm (4.1 inch).
Internal grinding to 508 mm (20 inch x 65mm (2.55 inch).
Internal grinding to 305 mm (12 inch) x 140 mm (5.5 inch).

Diamond dressing facility for internal and external grinding wheels

Adjustable headstock of 400 mm (15.74 inch).
Headstock swivel +/-7 degree.

Axis limits

X - + 45 mm (1.77 inch) to – 510 mm (20 inch) Internal spindle
X - + 45 mm (1.77 inch) to – 555 mm (21.8 inch) External spindle
Z - + 55 mm (2.16 inch) to – 2435 mm (95.8 inch)
U - + 385 mm (15.1 inch) to + 310 mm (12.2 inch)
W - + 5 mm (0.19 inch) to – 90 mm (3.5 inch)

Axis Speeds

X – 0 – 3000 mm / min (118 inches)
Z – 0 – 3000 mm / min (118 inches)
U – 0 – 2000 mm / min (78.7 inches)
W –0 – 2000 mm / min (78.7 inches)

Spindle speed ranges

Headstock Workhead 0 – 180 rpm

Wheelhead

External – 600 to 1000 rpm
Internal 1 – 3000 to 3700 rpm
Internal 2 – 4800 to 5200 rpm
Internal 3 – 8000 to 8400 rpm

Coolant Unit

2 Stage Filtering to 25 Micron
Tank capacity 1000 Litres

Electrical power

Power supply 415 volt, 3 phase 50 Hz
Headstock motor 14kw
External wheel motor 11kw
Internal; wheel motor 4kw
Gap slide adjustment motor 1.5kw
Coolant System 4kw
Lubrication pump 0.12kw

Machine dimensions

Length 10,090 mm (397 inches)
Width 6200 mm (244 inches)
Height 3575 mm (140 inches)
Machine weight 40,000 kgs (88,000 lbs)

Accessories
10 off assorted internal grinding spindles ranging from 500 mm (19.6 inches) to 1600 mm (63 inches) in length .

Boxes of assorted New and Used grinding wheels for internal and external grinding.

1 off Brand new Norton grinding wheel (Still in Box)
760x75x304.8 / MOS 33 M/S 830 RPM
107390298 / GG253173381

2 off steady rests.

The machine was built in 1990. The Siemens CNC control was upgraded in 2005.
