AMADA PEGA 357برج اللكمات

بطاقة الهوية
413057
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1990
الموقع
الهند
رقم المخزن
IN-PUN-AMA-1990-00001

الوصف

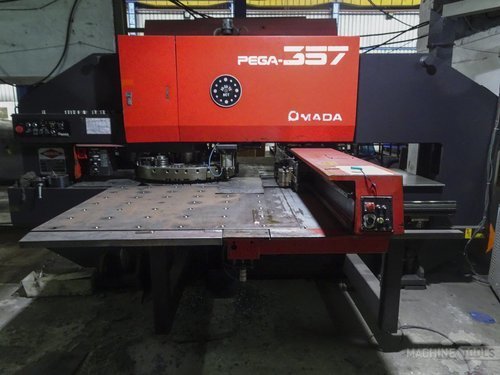

This AMADA PEGA 357 is a Turret Punching Machine that has been active for 64800 working hours since its manufacturing in 1990. It is equipped with a user-friendly AMADA AMADAN 04P-C control unit and is considered an effectively optimized machine due to its low maintenance costs. In the past, this PEGA 357 machine has worked mostly on up to 4mm thick mild steel and is delivered with 10 additional tools.

المواصفات

تحويل المواصفات للمتري
حمولة
30 T
محطة تارت#
58
CNC تحكم
CNC (FANUC 6M)

AMADA PEGA 357 Turret Punching Machine

Production Hours: 64800

General Data:
Measurements width: 3778 mm
Measurements depth: 4517 mm
Measurements height: 2173 mm
Machine weight: 11600 kg

Control Unit:
Brand: AMADA
Model: AMADAN 04P-C

Main Drive:
Punching force: 300 kN
Maximum sheet thickness: 4 mm

Movement:
X-Axis Movement: 1830 mm
Y-Axis Movement: 1270 mm

Tools:
Number of index: 2
Number of station: 58

Max Material Thickness:
Steel: 4 mm
Stainless steel: 2 mm
Aluminium: 2 mm

Media:
Main electronic connection: 400 V
Power consumption: 15 kVA
Air pressure: 6 bar

Additional Equipment:
* 10x Tools
