ELECTRONICA ULTRACUT S2سلك التنظيم الإداري

بطاقة الهوية
413087
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2010
الموقع
الهند
رقم المخزن
IN-EDM-ELE-2010-00001

الوصف

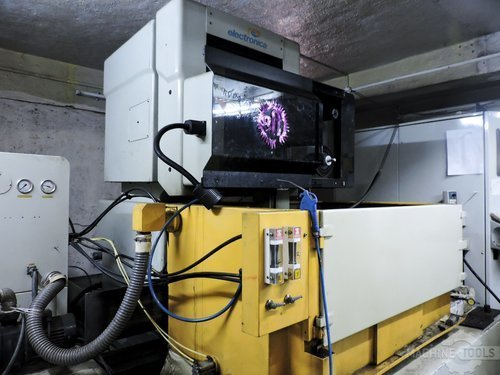

This Electronica Ultracut S2 Erosion Machine was manufactured in 2010 and has a production history of 11005 working hours. This machine is operated through an Elpuls 50S EMT100W-5 Control unit and includes an Elcam software license. Besides that, the Ultracut S2 requires a low amount of maintenance and occupies less space thanks to its compact design.

المواصفات

تحويل المواصفات للمتري
حركة الأكس X
23.62 "
حركة الأكس Y
15.75 "
حركة الأكس Z
11.81 "

Electronica Ultracut S2 Erosion Machine

Production Hours: 110005

General Data:
Measurements width: 4300 mm
Measurements depth: 4390 mm
Measurements height: 3000 mm
Machine weight: 4000 kg

Control Unit:
Brand: Elpuls 50S
Model: EMT100W-5

Main Drive:
Wire diameter: 0.25 mm
Max taper angle: 30º

Movement:
X-Axis Movement: 600 mm
Y-Axis Movement: 400 mm
Z-Axis Movement: 300 mm

Workpiece:
Workpiece X: 600 mm
Workpiece Y: 400 mm
Workpiece Z: 300 mm
Workpiece weight: 1000 kg

Table:
Outer length: 580 mm
Outer width: 860 mm

Media:
Main electronic connection: 415 V
Power consumption: 10 kVA
