TRUMPF TRUMATIC 2000Rبرج اللكمات

بطاقة الهوية
413099
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2000
الموقع
تركيا
رقم المخزن
TR-PUN-TRU-2000-00001

الوصف

This Trumpf Trumatic 2000 R Turret Punching Machine from 2000 has a production record of 45242 hours. Operated through a Bosch Control Unit, the equipment stands out for its excellent condition.

المواصفات

تحويل المواصفات للمتري
حمولة
18 T
محطة تارت#
10
CNC تحكم
CNC (BOSCH 3)

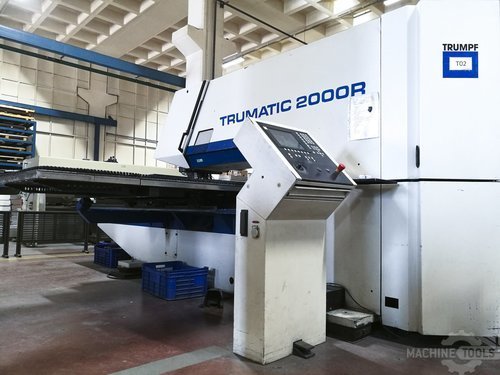

Trumpf Trumatic 2000 R Turret Punching Machine

Production Hours: 45242

General Data:
Measurements width: 6000 mm
Measurements depth: 4100 mm
Measurements height: 2070 mm
Machine weight: 9200 kg

Control Unit:
Brand: Bosch

Main Drive:
Punching force: 180 kN

Movement:
X-Axis Movement: 2500 mm
X-Axis Working Feed: 90 m/min
Y-Axis Movement: 1250 mm
Y-Axis Working Feed: 60 m/min
X-Y-Simultaneous Working Feed: 180 m/min
C-Axis Movement: 360°
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece:
Workpiece Z: 6.4 mm
Workpiece weight: 75 kg

Table:
Max punching diameter: 76 mm

Tools:
Slots in storage: 10

Media:
Main electronic connection: 400 V / 50 Hz
Power consumption: 17 kVA
Air pressure: 7-14 bar
