MIKRON WF71Dمراكز التجهيز العمودي

بطاقة الهوية
413106
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1992
الموقع
المانيا
رقم المخزن
DE-MIL-MIK-1992-00001

الوصف

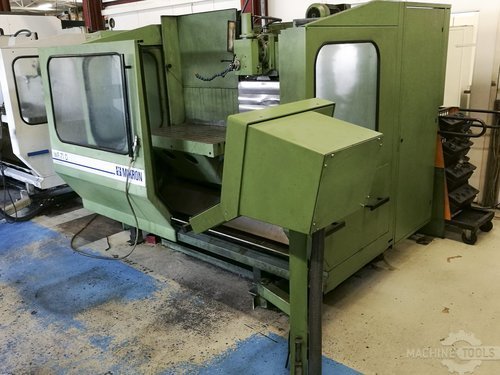

This WF-71 D is a Machining Center manufactured by Mikron in the year 1992. This machine is equipped with the outstanding HEIDENHAIN TNC 415 Control unit. In the past, this machine has exclusively worked with graphite, thus standing in a very good condition.

المواصفات

تحويل المواصفات للمتري
X
35.43 "
Y
19.69 "
Z
19.69 "
القدرة
8 hp
RPM
4000 rpm
# ATC
12
الجدول-W
19.69 "
الجدول-L
39.37 "
انحناء
SK40
أكسات
3

Mikron WF-71 D Machining Center

Production Hours: 124703

General Data:
Measurements width: 3304 mm
Measurements depth: 2456 mm
Measurements height: 1990 mm
Machine weight: 3500 kg

Control Unit:
Brand: HEIDENHAIN
Model: TNC 415

Main Drive:
Number of spindles: 1
Spindle speed range: 40-4000 1/min
Spindle motor power: 6 kW
Tool taper: SK40

Movement:
X-Axis Movement: 900 mm
X-Axis Working Feed: 2-3000 mm/min
X-Axis Rapid Traverse: 6 m/min
X-Axis Backlash: 0.05
Y-Axis Movement: 500 mm
Y-Axis Working Feed: 2-3000 mm/min
Y-Axis Rapid Traverse: 6 m/min
Y-Axis Backlash: 0.03
Z-Axis Movement: 500 mm
Z-Axis Working Feed: 2-3000 mm/min
Z-Axis Rapid Traverse: 4 m/min

Workpiece:
Workpiece weight: 500 kg

Table:
Outer length: 1000 mm
Outer width: 500 mm
Number of tslots: 7

Tools:
Slots in storage: 12
Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 200 mm

Media:
Main electronic connection: 3x380 V / 50 Hz
Power consumption: 15.4 kVA
