AMADA VIPROS 255برج اللكمات

بطاقة الهوية
413108
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1998
الموقع
الهند
رقم المخزن
IN-PUN-AMA-1998-00001

الوصف

This AMADA Vipros 255 Turret Punching Machine from 1998 has a record of 38000 production hours. Operated through a FANUC 18-P with RS232 interface control unit, this model is a great choice due to its silent operation and offers a solution for machining needs at a lower price within the Hydraulic Punching machines market.

المواصفات

تحويل المواصفات للمتري
حمولة
28 T
محطة تارت#
31
CNC تحكم
CNC (FANUC 18P)

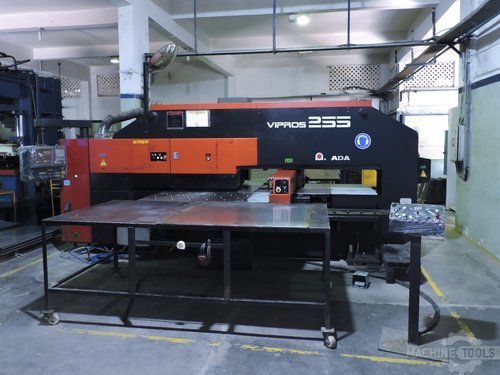

AMADA Vipros 255 Turret Punching Machine

Production Hours: 38000

General Data:
Measurements width: 4826 mm
Measurements depth: 4953 mm
Machine weight: 9200 kg

Control Unit:
Brand: FANUC
Model: 18-P
Interface: RS232

Main Drive:
Punching force: 280 kN

Movement:
X-Axis Movement: 1250 mm
X-Axis Rapid Traverse: 2559 IPM
X-Axis Accuracy: 0.03556 mm
Y-Axis Movement: 1250 mm
Y-Axis Rapid Traverse: 1968 IPM
Y-Axis Accuracy: 0.03556 mm

Tools:
Number of index: 3
Number of station: 31
Max weight: 100 kg
Max tool diameter: 88.9 mm

Media:
Main electronic connection: 20 KW
Power consumption: 17 kVA
Air pressure: 5.5 bar
Oil tank: 150 L
