AMADA QUATTRO AF1000Eقاطعات الليزر

بطاقة الهوية
413187
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2006
الموقع
الهند
رقم المخزن
IN-LAS-AMA-2006-00002

الوصف

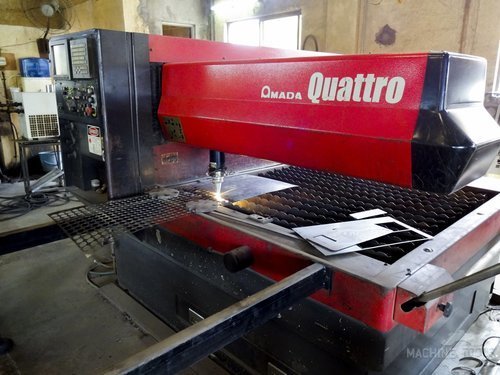

This AMADA Quattro AF1000E Laser Cutting Machine was manufactured in 2006 and has been operative for 19200 working hours ever since. In the past, this equipment has been used mainly for Job Shop tasks and has handled mild steel sheets of up to 2 mm in thickness. With a FANUC 160i-L Control unit, the model ensures a high productivity and efficiency: low foot print combined with minimal power consumption are two of its main features. On top, the Quattro AF1000E allows to process longer parts in the X direction.

المواصفات

تحويل المواصفات للمتري
وات
1000 w
حركة X
49.21 "
حركة Y
49.21 "
CNC تحكم
CNC (FANUC 160I-L)

AMADA Quattro AF1000E Laser Cutting Machine

Production Hours: 19200

General Data:
Measurements width: 2500 mm
Measurements depth: 3000 mm
Measurements height: 1700 mm
Machine weight: 3300 kg

Control Unit:
Brand: FANUC
Model: 160i-L

Main Drive:
Laser power: 1 kW
Laser type: Co2
Laser brand: Fanuc

Movement:
X-Axis Movement: 1250 mm
Y-Axis Movement: 1250 mm

Max Material Thickness:
Steel: 6 mm
Stainless steel: 3 mm
Aluminium: 2 mm

Media:
Main electronic connection: 200 V
Power consumption: 25 kVA
Internal cooling: Yes
