LODI RTR S800المطاحن سطح الدوارة

بطاقة الهوية
413197
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2000
الموقع
إيطاليا
رقم المخزن
IT-GRI-LOD-2000-00001

الوصف

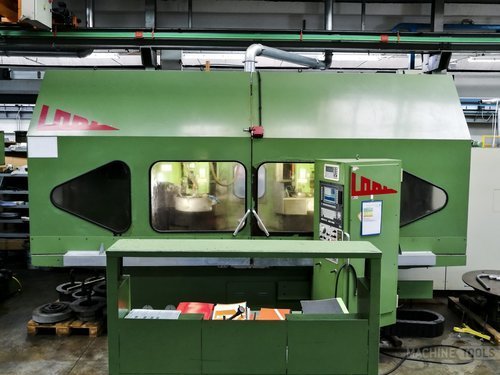

This Lodi RTR S800 CNC Grinding Machine was built in Italy in 2000. It is equipped with a Tecnel T2010 Control unit and two grinding wheels for a fluent working process. This equipment comes with an incorporated, wheel-shaping diamond tool for special piece production. In the past, this Lodi Grinding machine has been working mostly on steel parts for textile industry machinery.

المواصفات

تحويل المواصفات للمتري
قطر الظرف
39.37 "
القدرة
20.1 hp
CNC تحكم
CNC (TECNEL T2010)

Lodi RTR S800 CNC Grinding Machine

General Data:
Measurements width: 6300 mm
Measurements depth: 2300 mm
Measurements height: 2950 mm
Machine weight: 13500 kg

Control Unit:
Brand: Tecnel
Model: T2010

Main Drive:
Number of spindles: 2
Spindle speed range: 2100 1/min
Spindle motor power: 15 kW

Movement:
X-Axis Movement: 4000 mm
X-Axis Rapid Traverse: 3 m/min
Y-Axis Movement: 5000 mm
Y-Axis Rapid Traverse: 5 m/min
Z-Axis Movement: 1000 mm
Z-Axis Rapid Traverse: 0.5 m/min
W-Axis Movement: 1000 mm
W-Axis Rapid Traverse: 3 m/min

Workpiece:
Workpiece drm: 1000 mm

Table:
Outer length: 800 mm

Tools:
Max tool diameter: 500 mm
Max tool length: 203 mm

Media:
Main electronic connection: 400 V / 50 Hz
Power consumption: 55 kVA
Lubrication tank: 25 L
