MITSUBISHI EDM RA90سلك التنظيم الإداري

بطاقة الهوية
413224
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2001
الموقع
الهند
رقم المخزن
IN-EDM-MIT-2001-00001

الوصف

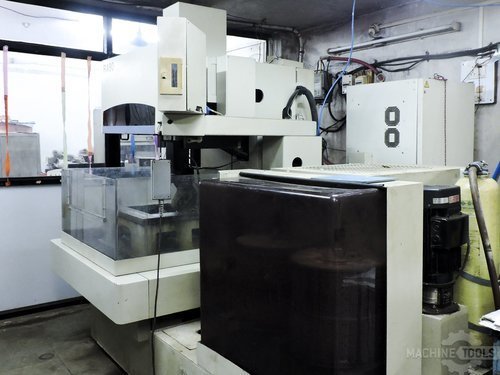

This Mitsubishi Electric RA90 Erosion Machine was manufactured in 2001 and has a production record of 24005 working hours. This machine is equipped with a Mitsubishi RAS 1 control unit and stands out for its compactness, which makes it fit in virtually every workspace, and the low need of maintenance required by this equipment.

المواصفات

تحويل المواصفات للمتري
حركة الأكس X
12.59 "
حركة الأكس Y
9.84 "
حركة الأكس Z
6.5 "
قلوظة آلية (نعم/لا
Yes
غارقة (نعم/لا
No
CNC تحكم
CNC (MITSUBISHI 64-BIT)

Mitsubishi Electric RA90 Erosion Machine

Production Hours: 24005

General Data:
Measurements width: 1400 mm
Measurements depth: 2075 mm
Measurements height: 2030 mm
Machine weight: 1400 kg

Control Unit:
Brand: Mitsubishi
Model: RAS 1

Main Drive:
Working current: 50 A
Wire diameter: 0.2-0.3 mm
Max taper angle: 15° (for workpiece 100mm thick)

Movement:
X-Axis Movement: 320 mm
Y-Axis Movement: 250 mm
Z-Axis Movement: 165 mm

Workpiece:
Workpiece X: 320 mm
Workpiece Y: 250 mm
Workpiece Z: 165 mm
Workpiece weight: 350 kg

Table:
Outer length: 478 mm
Outer width: 572 mm
Distance between: 32 mm

Media:
Main electronic connection: 415 V
Power consumption: 10 kVA
