MURATA WIEDEMANN M-1250برج اللكمات

بطاقة الهوية
413257
علامة تجارية
موديل
M-1250
حالة
مستعملة - جيد
السنة
1991
الموقع
فنلندا
رقم المخزن
FI-PUN-MUR-1991-00001

الوصف

This Murata Wiedemann M-1250 Turret Punching Machine was manufactured in 1991 and has an estimated working record of 50000 production hours. This reliable machine operates through its FANUC Series O-P Control unit, equipped with a serial and parallel Interface and has a 196 kN punching force.

المواصفات

تحويل المواصفات للمتري
حمولة
19 T
محطة تارت#
22

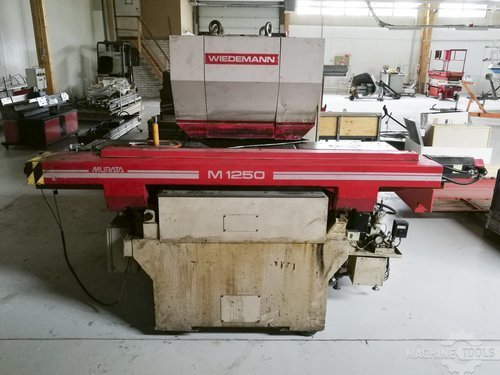

Murata Wiedemann M-1250 Turret Punching Machine

Production Hours: 50000

General Data:
Measurements width: 3750 mm
Measurements depth: 2850 mm
Measurements height: 1900 mm
Machine weight: 6500 kg

Control Unit:
Brand: FANUC
Model: Series O-P
Interface: Seriell Prallel

Main Drive:
Punching force: 196 kN
Maximum sheet thickness: 6.35 mm

Movement:
X-Axis Movement: 1290 mm
X-Axis Rapid Traverse: 50 m/min
Y-Axis Movement: 1040 mm
Y-Axis Rapid Traverse: 50 m/min

Workpiece:
Workpiece X: 2500 mm
Workpiece Y: 1000 mm
Workpiece weight: 50 kg

Tools:
Number of station: 22

Media:
Main electronic connection: 200-220 V / 50-60 Hz
Power consumption: 15 kVA
Air pressure: 4.4 bar
