FINN-POWER TP 2525برج اللكمات

بطاقة الهوية
413261
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1996
الموقع
فنلندا
رقم المخزن
FI-PUN-FIN-1996-00001

الوصف

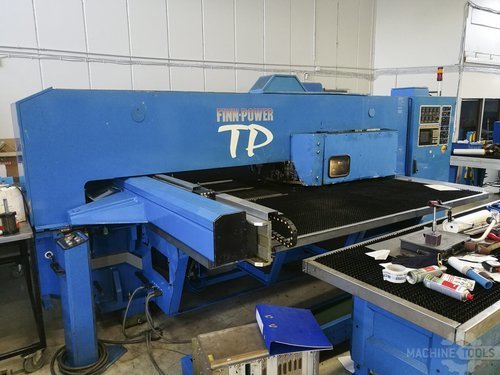

This Finn-Power TP 2525 is a Turret Punching Machine from 1996 and has a production record of 29274 working hours. This machine is operated through a Siemens SINUMERIK System 3 Control unit, and stands out because of its 21x Turret, 6x Index stations and 1x Multitool station. As additional equipment this machine includes brush tables and security laser mirrors.

المواصفات

تحويل المواصفات للمتري
حمولة
33 T
محطة تارت#
21 station
CNC تحكم
CNC (Siemens 3N)

Finn-Power TP 2525 Turret Punching Machine

Production Hours: 29274

General Data:
Measurements width: 5100 mm
Measurements depth: 5100 mm
Measurements height: 2200 mm
Machine weight: 10600 kg

Control Unit:
Brand: Siemens
Model: SINUMERIK System 3

Main Drive:
Punching force: 300 kN

Movement:
X-Axis Movement: 2580 mm
X-Axis Rapid Traverse: 80 mm/min
Y-Axis Movement: 1315 mm
Y-Axis Rapid Traverse: 60 mm/min

Workpiece:
Workpiece X: 2530 mm
Workpiece Y: 1270 mm

Tools:
Number of index: 4
Number of station: 21
Max tool diameter: 88.9 mm

Media:
Main electronic connection: 3 x 400 V / 50 Hz
Power consumption: 25 kVA
Air pressure: 6 bar

Additional Equipment:
* Brush tables
* Security laser mirrors
