ANAYAK ANAK-MATIC 9مراكز التجهيز العمودي

بطاقة الهوية
413269
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1990
الموقع
اسبانيا
رقم المخزن
ES-MIL-ANA-1990-00001

الوصف

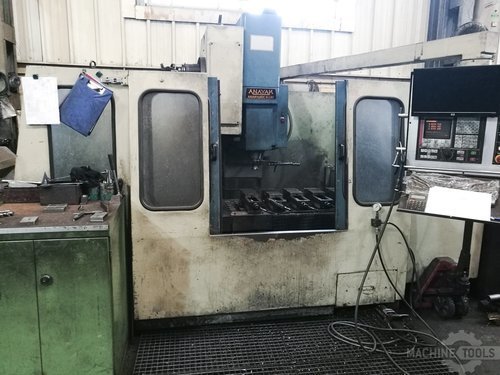

This ANAYAK ANAK MATIC-9 CNC is a Spanish Machining Center built in the year 1990 that has a production record of 25000 working hours. This machine is equipped with a Fagor 8025 control unit and is provided with additional tools. This machine had new telescopes installed and offers the possibility to install a 4th axis if needed.

المواصفات

تحويل المواصفات للمتري
X
42.13 "
Y
21.65 "
Z
20.08 "
RPM
5000 rpm
# ATC
24
الجدول-W
21.06 "
الجدول-L
51.18 "
CNC تحكم
CNC (FANUC 18M)

ANAYAK ANAK MATIC-9 CNC Machining Center

Production Hours: 25000

General Data:
Measurements width: 3750 mm
Measurements depth: 2800 mm
Measurements height: 2400 mm
Machine weight: 6500 kg

Control Unit:
Brand: Fagor
Model: 8025

Main Drive:
Number of spindles: 1
Spindle speed range: 6000 1/min
Spindle motor power: 11 kW
Tool taper: ISO 40

Movement:
X-Axis Movement: 1068 mm
X-Axis Rapid Traverse: 18000 mm/m
Y-Axis Movement: 534 mm
Y-Axis Rapid Traverse: 18000 mm/m
Z-Axis Movement: 510 mm
Z-Axis Rapid Traverse: 18000 mm/m

Table:
Outer length: 1300 mm
Outer width: 534 mm

Tools:
Slots in storage: 20

Media:
Main electronic connection: 380 V / 50 Hz
Chip conveyor: Yes

Additional Equipment:
* Tools
