TRUMPF TRUMATIC 500برج اللكمات

بطاقة الهوية
413308
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1996
الموقع
الهند
رقم المخزن
IN-PUN-TRU-1996-00001

الوصف

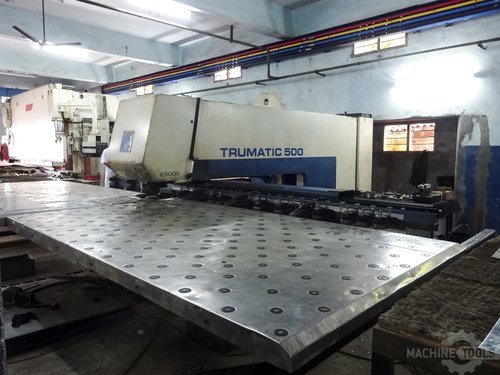

This Trumpf Trumatic 500 Turret Punching Machine was manufactured in the year 1996, and has worked for approximately 50400 production hours. Equipped with a Bosch Trumagraph Control unit, this unit stands out for its 20 auto-indexed stations, and has in the past worked most of the time on up to 6 mm thick mild steel.

المواصفات

تحويل المواصفات للمتري
حمولة
25 T
محطة تارت#
18
CNC تحكم
CNC (BOSCH TRUMAGRAPH CC220S)

Trumpf Trumatic 500 Turret Punching Machine

Production Hours: 50400

General Data:
Measurements width: 5300 mm
Measurements depth: 5200 mm
Measurements height: 2000 mm
Machine weight: 13800 kg

Control Unit:
Brand: Bosch
Model: Trumagraph

Main Drive:
Punching force: 220 kN
Maximum sheet thickness: 6 mm

Movement:
X-Axis Movement: 2500 mm
Y-Axis Movement: 1500 mm

Tools:
Number of index: 20
Number of station: 20

Max Material Thickness:
Steel: 6 mm
Stainless steel: 3 mm
Aluminium: 2 mm

Media:
Main electronic connection: 480 V
Power consumption: 19 kVA
Air pressure: 6 bar
