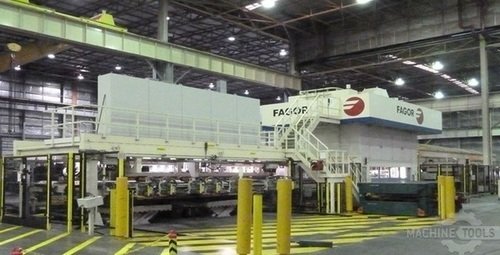

600 Ton Fagor High Speed Blanking Line NEW 2007


Material Specifications:
Class One Material Automotive Skins/Exposed
Coils of: Cold rolled steel, High Strength Steel Type HSLA,
DP600 − Yield strength: 120 - 500 N/mm2 (Mpa). 17,500 to 72,000 PSI
Tensile strength: 270 - 700 N/mm2 (Mpa). 40,000 to 100,000 PSI
Strip Width: 1800mm 72"
Thickness: .6-1.6mm .023-.062"
Coil Weight: 15MT
Blank Length up to 4100mm 161"
Trapezoid Angle: 30 Degrees
Width 300 to 1,800 mm
Length (Pitch direction) 250 mm to 4,000 mm
Stations 2 (end stacker)
Stacking carts 4 (2 per station)
Max. Number stacks/pallet 2
Pallet (stacking base)max.
dimensions per station
1.910 mm x 2.500 mm x 225 mm
Pallet (stacking base)max.
dimensions with 2
synchronised stations
2.000 mm x 4.200 mm x 225 mm
Weight max. 10,000 Kg
Height max. 600 mm with pallet

Line Direction: L-R 31 meters (From Uncoiler through Stacker)

Feed Line Consisting Of:
Coil Car
Mandrel Uncoiler
Coil Breaker
Precision 6 HI Corrective leveler with AC inverter drive
Cascade Quadrants
Roll Feed

Model: LE4-600-4600-2200 Fagor Four Point Blanking Press
Capacity: 600MT at 12.5mm
With Oscillating Trapezoidal die Set
Strokes per Minute: 14 - 55
Stroke: 300mm (12")
Shut Height: 1300mm 51" SDAU
Slide Adjustment: 200mm (7.87")
Bolster (L-R x F-B): 4600mm x 2200mm (181" x 86")
Rolling Bolster
Electric Motor: 415 Volt 3 Phase 50 Hz
Main Drive: 110 kW
Slide Adjustment Drive: 11 kW

Press Height: Approx. 6.8m Tall

Dual Magnetic Stacker with 2200mm Shuttle Cars with Scissor Lift Design
