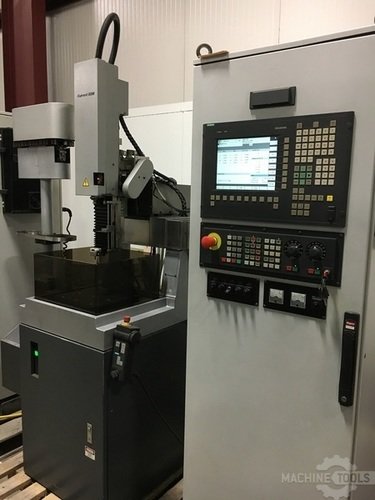

CURRENT EDM CT300أجهزة حفر بالشرارة للتخريم

بطاقة الهوية
413624
علامة تجارية
موديل
السنة
2004
الموقع
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
1336

الوصف

Current EDM manufactures the finest hole drillers in the world. Used in applications such as aerospace, medical, aircraft and automotive. The CT-300 accurately drills small holes in nearly any electrically conductive material, at high rates, on angles, curved surfaces, and through threads. A Precision Machine Tool A tough, powerful and compact unit, the CT300 adds flexibility to your shop. The CT300 controller allows you to program off-line, upload files, reduce set-up time and improve accuracy with automatic part referencing. Now walk away and know the CT300 is producing accurately positioned holes. * Single-cast, bridge construction with stainless steel head and precsion ballscrews provide years of reliable, accurate machining. * Predictable and consistent results using economical water dielectric fluid. * 57 peak amp power supply effectively operates with electrode diameters from .004" to .256". * User friendly control programs 5-axes, giving you 9 coordinate systems, canned cycle routines and electrode wear compensation cycles for blind hole applications. Advantages: Siemens Model 840DI PC-Based Control * Windows NT Based Operating System * 10.4" TFT Color Monitor * Resolution 640 x 480 Pixels * 1.0 Gigabyte Program Storage (minimum) * RS232C * USB Port * 3.5" Disk Drive Current EDM User Applications * Custom programming screens written by CEI * Upload parameters with your program (password protected) or call up new power sets from the program * Depth Control / Breakout detection * Five-axes pattern shift & pattern offset with hole depth adjustment * Ethernet Software facilitates DNC operations and can interface with other networks (optional) * One-button work co-ordinate set-up * Up to 9 Linear Interpolating Axes * Absolute Encoders- no homing required! * All Programming Functions are programmed through one control (editing, offsets, alarms, etc.) * Feedrate Override- facilitates faster set ups. * Lock Out Function- 3 levels, password protected. * 1,000 Programmable Power Settings- will change Ip, Ton, T off, capacitance and Spindle RPM on the fly. * Soft limits and Program Limits * Working Area Limits * Full Help Menus * Faster Referencing Cycles- tooling ball and work piece pick-ups, Guide-height, Rotary pick-ups & custom referencing available. Part probing capability - (optional) * Faster Automatic Electrode Changing

المواصفات

تحويل المواصفات للمتري
أقل قطر للثقب
0.004 "
أقصى قطر للثقب
0.256 "
عرض الشغل
12 "
طول الشغل
12 "
حركة الأكس X
12 "
حركة الأكس Y
8 "
حركة الأكس Z
16 "
الأبعاد
51" x 52" x 85" H
الوزن
700 Lbs
CNC تحكم
CNC (Siemans Model 840DI)

* Siemans Model 840DI PC-Based CNC Controller
* 24 Position Automatic Electrode Changer
* Granite Worktable
* High Pressure 3-Piston Type Flushing Pump
* Siemens High-Dynamic AC Servo, w/Absolute positioning Encoders
* Remote Hand Controller
* Ebbco Filtration System (90 Gal)
* Ozone Generator
* Electric Chiller
* All Available Manuals and Accessories

** A second machine without filtration & chiller is also available
