CHURCHILLالمطاحن لفة

بطاقة الهوية
413747
علامة تجارية
حالة
مستعملة - جيد
الموقع
Victoria
استراليا
عودة السياسة
كما هو
الثمن

الوصف

An older machine that is still an economical solution to get around that large grinding job, without spending a fortune to achieve the same result. Located at our Australian division in Melbourne. We can load and pack into containers. Terms 20% holding deposit - 80% prior to loading within 60 Days. Contact Steve Davies sales@espmach.com.au

المواصفات

تحويل المواصفات للمتري
الأرجحة
60 "
المراكز
240 "
متوج (نعم/لا
Yes
الوزن
45,000 pounds.

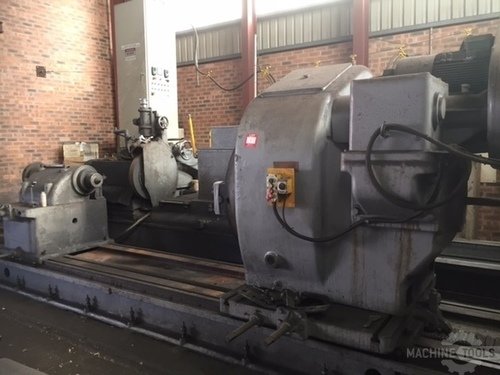

CHURCHILL ROLL GRINDER
1500mm SWING x 6000mm BETWEEN CENTRES.
ABLE TO DO CONVEX, CONCAVE & TAPER GRINDING.
STEADY RESTS. UPGRADED ELECTRICS 3 YEARS AGO.
Swing 63 inches
Distance between centres 236 inches
Max Dia ground with full size wheel 60 inches
Size of Standard Grinding Wheel 26 inch x 2 x 12
Minimum Dia ground with full size wheel 6 inch
Wheel Speed 425 to 850 rpm
One revolution on hand wheel .015 inches
One division of hand wheel .000125 inches
Wheel head traverse speeds Inches per min 2 to 66 inches
Capacity of Roll journal rests (2 point type) 6 to 25 inches
18 to 32 inches
25 to 36 inches
HP of motor 25 HP
HP of work head drive 15/20 HP
Weight of machine 45,000 pounds
