MURATA WIEDEMANN CENTRUM 2500برج اللكمات

بطاقة الهوية
413925
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1998
الموقع
الهند
رقم المخزن
IN-PUN-MUR-1998-00001

الوصف

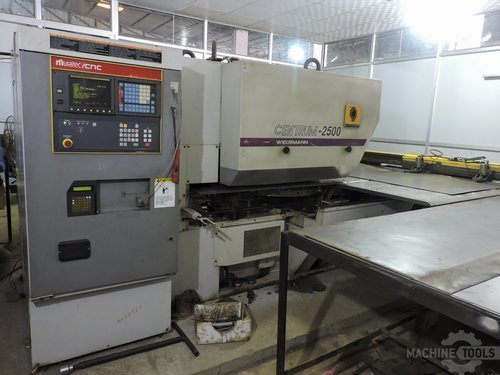

This Murata Wiedemann C-2500 Turret Punching Machine has worked approximately 57000 production hours since its manufacture in 1998. This 200 kN strong machine is equipped with a FANUC Series O-P Control unit and allows working with up to 80 mm diameter tools. In the past, this C-2500 has worked on up to 2 mm thick mild steel, and includes a set of turret tools as additional equipment.

المواصفات

تحويل المواصفات للمتري
حمولة
22 T
محطة تارت#
22 station
CNC تحكم
CNC (MURATA)

Murata Wiedemann C-2500 Turret Punching Machine

Production Hours: 57000

General Data:
Measurements width: 3400 mm
Measurements depth: 4600 mm
Measurements height: 2100 mm
Machine weight: 8000 kg

Control Unit:
Brand: FANUC
Model: Series O-P

Main Drive:
Punching force: 200 kN
Maximum sheet thickness: 6 mm

Movement:
X-Axis Movement: 1250 mm
Y-Axis Movement: 1250 mm

Tools:
Number of index: 2
Number of station: 18
Max tool diameter: 80 mm

Max Material Thickness:
Steel: 6 mm
Stainless steel: 3 mm
Aluminium: 2 mm

Media:
Main electronic connection: 415 V
Power consumption: 15 kVA
Air pressure: 6 bar

Additional Equipment:
* Set of turret tools
