GISHOLT 5Lبرج مخارط (رام والسرج)

بطاقة الهوية
413932
علامة تجارية
موديل
الموقع
الولايات المتحدة الامريكية
رقم المخزن
13246
الثمن

الوصف

| *** WE TAKE TRADE INS *** | Discounted to $29,500 | Saddle type turret lathe, 9.5" hole; 24" 3-jaw chuck; threading

المواصفات

نوع
Saddle

We are pleased to offer for your consideraton:

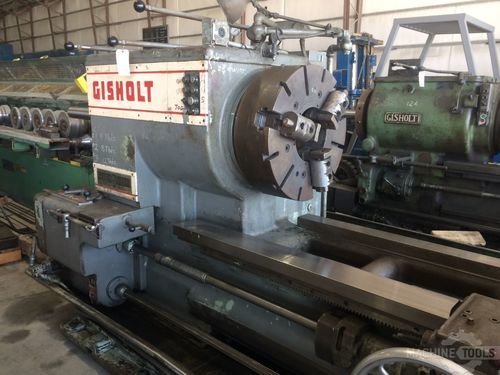

(1) Gisholt Saddle Type Turret Lathe

Stock Number: 13246
List Price: $39,500
Discounted Price: $29,500

Manufacturer: Gisholt
Model Number: 5L
Serial Number: 988-6
Year: 1951

Swing over bedways: 40"
Swing over carriage wing: 37-1/2"
Swing over cross slide carriage: 33-1/2"
Distance between centers: 93"
Spindle bore diameter: 9-1/2"
Spindle nose: A1-20
Spindle speeds: 11 to 280 RPM
Chuck size: 24" (3-jaw)
Cross slide travel of tool post carriage: 18"
Longitudinal carriage travel: 93"
Power cross feeds: (16) .005" - .044"
Power longitudinal feeds: (16) .005" - .044"
Longitudinal travel of turret carriage: 93"
End of spindle to face of turret: 103"
Power longitudinal feeds: (16) .005" - .044"
Motor: 40 HP / 1760 RPM
Volts: 220 / 440
Phase: 3
Cycles: 60
Amps: 100/50
Coolant pump motor: 1/2 HP
Approximate dimensions: 198" x 86" x 75" high
Approximate weight: 24,000 lbs.

Features:
9-1/2" hole through spindle
24" 3-jaw chuck
4-way toolpost
Threading
Coolant system
Work light
