LANSING G.43"_20-3/4"مخارط المحرك

بطاقة الهوية
413966
علامة تجارية
موديل
G.43"_20-3/4"
الموقع
الولايات المتحدة الامريكية
رقم المخزن
13245

الوصف

| *** WE TAKE TRADE INS *** | 43" swing; 120" centers; 20-3/4" spindle hole; Double chucks; Newall DRO, Quick change tool post

المواصفات

تحويل المواصفات للمتري
الأرجحة
43 "
المراكز
120 "

We are pleased to offer for your consideraton:

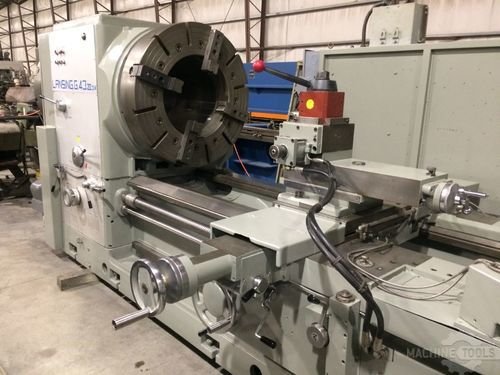

(1) 43” x 120” Lansing Hollow Spindle Engine Lathe

Stock Number: 13245
List Price: $149,500

Manufacturer: Lansing
Model Number: G.43"_20-3/4"
Serial Number: 6382
Year: 2002

Swing over bed: 43"
Distance between centers: 120"
Swing in gap: 58"
Swing over cross slide: 33"
Width of bed: 29 1⁄2”
Spindle Bore: 20 3⁄4”
Spindle nose: A1-28
Number of speed steps: 3
Range of spindle speeds: 0 to 177 RPM
Tool Retractor Slide Travel: 1 1⁄4”
Compound Slide Travel: 14 1⁄2”
Cross Slide (width x travel): 13 1⁄2” x 25”
Number of Longitudinal & Cross Feeds: 40
Range of Longitudinal Feeds: .004” - .064”
Range of Cross & Compound Feeds: .003” - .053”
Rapid traverse, longintudinal: 60”/min.
Rapid traverse, cross slide: 30”/min.
Rapid traverse, compound slide: 30”/min.
40 Metric Threads: .5 – 7.5
160 Inch Threads (TPI) Standard: 60-4 120 – 1
40 Module Threads: .25 – 3.75
40 Diametral Threads: 120 – 8
Motor: 60 HP
Motor RPM: 1150/2000
Volts: 240
Amps: 7.72 / 3.96
Approximate dimensions: 22' 2" x 7' 11" x 7' 9" high
Approximate weight: 30,000 lbs.

Features:
Newall Digital Readout
(4) 35-1/4" chucks
Quick change tool post
Taper attachment Automatic threading
