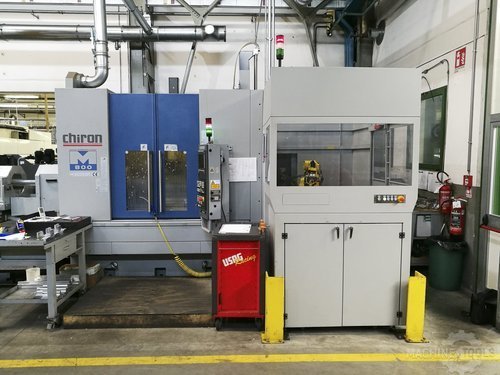

CHIRON MILL-800 FAمراكز التجهيز العمودي

بطاقة الهوية
414463
علامة تجارية
موديل
MILL-800 FA
حالة
مستعملة - جيد
السنة
2012
الموقع
إيطاليا
رقم المخزن
IT-MIL-CHI-2012-00001

الوصف

This Chiron Mill-800 FA Machining Center was manufactured in the year 2012 in Germany and has a production history of 8593 working hours. Operated through a SIEMENS SINUMERIK 840D Control unit, the equipment benefits from a working table of 500 mm of outer width. As additional equipment, this machine includes a hold and locking device and a Fanuc robot for positioning and unloading of the pieces.

المواصفات

تحويل المواصفات للمتري
X
31.5 "
Y
18.9 "
Z
24.8 "
RPM
12000 rpm

Chiron Mill-800 FA Machining Center

Production Hours: 8593

General Data:
Measurements width: 8325 mm
Measurements depth: 6875 mm
Measurements height: 3171 mm
Machine weight: 9100 kg

Control Unit:
Brand: Siemens
Model: SINUMERIK 840D

Main Drive:
Spindle speed range: 20-12000 1/min

Movement:
X-Axis Movement: 800 mm
Y-Axis Movement: 480 mm
Z-Axis Movement: 630 mm

Workpiece:
Workpiece weight: 1200 kg

Table:
Outer width: 500 mm

Tools:
Max weight: 4 kg
Max tool diameter: 75 mm
Max tool length: 320 mm

Media:
Main electronic connection: 400 V / 750-60 Hz
Power consumption: 66 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment:
* Bar holding device with locking system and vise
* Fanuc unload and positioning robot
