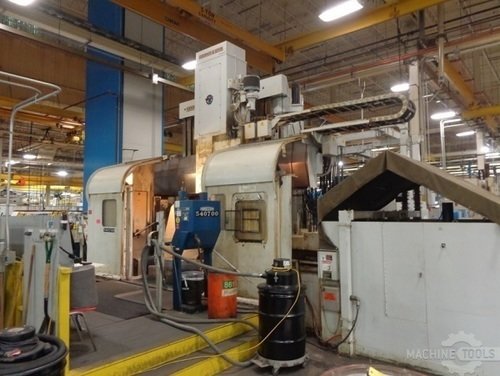

GIDDINGS & LEWIS 84VTCعمودي مملة ميلز (incld VTL)

بطاقة الهوية
علامة تجارية
تستخدم - تمت إعادة تشكيلها
الولايات المتحدة الامريكية


This 84" G&L VTL is a KRC Machine Tool Services certified used machine tool. This machine has been completely disassembled and inspected. All mechanical assembles and been inspected and repaired to ensure the machine is in excellent mechanical condition. This machine has been CNC retrofitted with a new Fanuc 0i-TD control system, new Fanuc servo motors and drives and a complete machine rewire. New electrical documentation. KRC will provide a complete 1 year machine warranty. Mechanical ● Complete mechanical assembly & evaluation of the machine ● Clean & inspect ball screws and rail lifting screws ● Clean & Inspect table transmission & bearings ● Rebuild lubrication system ● Rebuild hydraulics system ● Inspect all wear material ● Install new way wipers ● Rebuild way covers ● Rebuild chip conveyor ● Full one-year warranty, parts and labor ● Optional: 2-Axis side head with 24 tool ATC ● Optional: Paint machine Electrical ● All new electrical & electronics including a Fanuc 0i-TD CNC ● New Fanuc Alpha AC servomotors and drives ● Rebuild the existing 100HP Spindle Motor ● New NEMA 12 electrical magnetic panel enclosure ● New operators panel in a new pedestal mounted enclosure ● Complete rewire of the machine ● Complete documentation package ● Full one year warranty, parts and labor. Fanuc parts warranty - two years


تحويل المواصفات للمتري
قطر المنضدة
84 "
96 "
ارتفاع الشغل U/R
96 "
100 hp
240 rpm


Model 515
Serial Number 515-28-96
Fanuc 0i-F CNC Retrofit
CNC Control Fanuc 0i-TD
Table Diameter 84.0”
Table Swing 96.0”
Max Height Under Cross Rail 96.0”
Vertical Ram Stroke 50.0”
Vertical Ram Taper #60 ANSI
Vertical Ram Cross Section 10.5” x 10.5”
Table Speed (2 ranges) 2 - 240 RPM
Table Load 250,000 LBS
Spindle Drive 100 HP
Rapid Traverse Rate 150 IPM
Feed Rate 0.1-150 IPM
45 Tool ATC yes
Chip-Conveyor yes
High Volume Flood Coolant yes
Coolant Thru Center of Ram yes
Telescopic Covers (cross rail) yes


Side Head Ram
Side Head Ram Travel 32”
Side Head Ram Tool Taper #50 ANSI
24 Tool Side Head ATC
Paint Machine customer specified

Equipped With:

Fanuc CNC Retrofit
New Operators Station
45 Station Automatic Tool Changer
Power Draw Bar on Ram
84” Plain Table with 16 Radial T-Slots
360,000 Degree Table Positioning
Ballscrews & Independent Servos
Way Covers
Chip Conveyor
Hardened & Ground Ways
25 HP Milling Spindle
100 HP Main Motor 460/3/60 Cycle
