MAZAK VORTEX 1400/160-IIمراكز التجهيز العمودي (5 محور أو أكثر)

بطاقة الهوية
414798
علامة تجارية
السنة
2007
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
11826

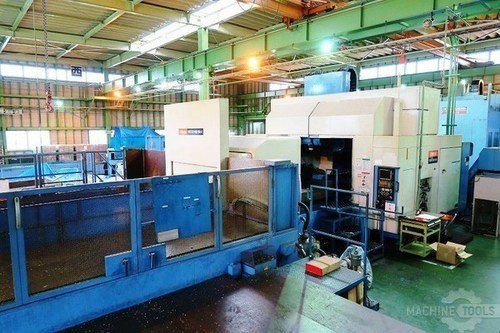

11847 a
صور ( 5 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على MAZAK VORTEX 1400/160-II ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
414798
علامة تجارية
السنة
2007
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
11826

الوصف

. MAZAK VORTEX 1400/160II 5-AXIS CNC LARGE CAPACITY VERTICAL MACHINING CENTER SERIAL NUMBER NA NEW 2007 GENERAL SPECIFICATIONS: Table Size 177.2" x 39.4" Distance from Table top to spindle Nose 7.87" to 31.89" Cutting Feed Rate (A & B Axis) 1,800 Deg/min Number of simultaneously controlled axis 5-Axis Table load capacity 11,023 lbs. X-Axis Travel 165.35" Y-Axis Travel 55.11" Z-Axis Travel 24.02" A-Axis Movement in/out +/- 40 Degrees B-Axis Movement left/right +/- 40 Degrees Spindle Taper BT-50 Big Plus Spindle Speed 50-13,000 RPM Spindle Motor 100 HP Tool magazine capacity 60 Position ATC Max. Tool Diam/Length/Weight 8.27"/14.96"/44 lbs Tool Change Time Chip to Chip 9.8 Seconds Rapid Traverse Rates X,Y/Z 787 IPM/1260 IPM Cutting Feed Rates (X/Y/Z) 0.04 to 315 IPM Min. Indexing Increments 0.0001 Degrees 0.0001 Degrees EQUIPPED WITH: Fanuc 31i-A5 CNC Control (2) Pallets 177.2" x 39.4" Renishaw Probe Multi Tap Transformer 3D Coordinate System Conveyor. Embedded Ethernet Spindle Chiller Unit Tool Holders Coolant thru Spindle Rigid Tapping Double Column Bridge Design Dual Length Chip Conveyor Page 2 of 3 EQUIPPED WITH: (Cont.) Coolant System, Lighting Device Y-Axis Stroke (1400mm) Fanuc 311-A5 Specification 10.4 Stereo LCD, 2 Pallet Changer Main Spindle 13,000 RPM (100 HP/Big Plus) ATC 60 Chain Formula, Column 300mm-810mm Chiller Unit, Tool length measurement function Manual pulse separation type (1 piece) Ball Screw shaft core cooling (X-Y,Z Axis) Mist Collector (CR-1500K) Coolant temperature Control (Chiller) Coolant Gun, High Pressure Flood Coolant (15 kgf) Shower Coolant, High Pressure Spindle through Coolant (155 kgf) Cover Coolant, Operator door interlock (with lock mechanism) Automatic power cutoff 3 Stage Signal Light, Additional Lighting Overall Cover, Closed Type Whole Force Bar Chip Conveyor (sideways Right, CONSEP Specification) One-way appointment (GB-60) Cylindrical Interpolation Circle between complementary arcs 3 Compensation Primary Cylinder Re-Circle Smooth Interpolation, NURBS Structure Drilling Fixed Cycle Programmable Mirror Image, Data Input (G10) Optional Block Skip, Stroke Check before Movement Store Program Stroke Check 2 Program handle Interrupt Page 3 of 3 EQUIPPED WITH: Manual handle interrupt Sequence number collation stop Rigid Tap, Tool Position offset (G45 to G48) 3D Tool Correction Tool Correction amount memory Tool Correction number 32 pairs Tool correction number 99 paurs Scalable Plastic Number of registered programs 120 Leader/puncher interface External work number Data server (2 GB) hard disk Embbeded Ethernet Program storage capacity 64 Kbytes Recommended CNC package option 2 Automatic centering function (wireless RMP 60) Scale feedback (IE, Y-Axis) Vacuum piping and completion set for side modifications Vacuum piping is a cable pair Side Conveyor (with Bucket) Side Packet capacity up Side Cover Coolant Tool tip point for 5-Axis mechanism Clamp Mechanism for shaft machining Program Capacity UP (1 MB) Specified color is the old Mazak Standard (White & Blue) Because the step block is low, special order creation 1 000x1000x4500

المواصفات

تحويل المواصفات للمتري
X
165.4 "
Y
55.12 "
Z
24.02 "
أكسات
5
القدرة
100 hp
RPM
13000 rpm
# ATC
60
انحناء
50

.
MAZAK VORTEX 1400/160II 5-AXIS CNC LARGE CAPACITY VERTICAL
MACHINING CENTER

SERIAL NUMBER NA NEW 2007

GENERAL SPECIFICATIONS:

Table Size 177.2" x 39.4"
Distance from Table top to spindle Nose 7.87" to 31.89"
Cutting Feed Rate (A & B Axis) 1,800 Deg/min Number of simultaneously controlled axis 5-Axis Table load capacity 11,023 lbs.
X-Axis Travel 165.35"
Y-Axis Travel 55.11"
Z-Axis Travel 24.02"
A-Axis Movement in/out +/- 40 Degrees
B-Axis Movement left/right +/- 40 Degrees Spindle Taper BT-50 Big Plus Spindle Speed 50-13,000 RPM Spindle Motor 100 HP Tool magazine capacity 60 Position ATC Max. Tool Diam/Length/Weight 8.27"/14.96"/44 lbs Tool Change Time Chip to Chip 9.8 Seconds Rapid Traverse Rates X,Y/Z 787 IPM/1260 IPM Cutting Feed Rates (X/Y/Z) 0.04 to 315 IPM Min. Indexing Increments 0.0001 Degrees 0.0001 Degrees

EQUIPPED WITH:
Fanuc 31i-A5 CNC Control
(2) Pallets 177.2" x 39.4"
Renishaw Probe
Multi Tap Transformer
3D Coordinate System Conveyor.
Embedded Ethernet
Spindle Chiller Unit
Tool Holders Coolant thru Spindle
Rigid Tapping
Double Column Bridge Design
Dual Length Chip Conveyor

Page 2 of 3

EQUIPPED WITH: (Cont.)
Coolant System, Lighting Device
Y-Axis Stroke (1400mm)
Fanuc 311-A5 Specification
10.4 Stereo LCD, 2 Pallet Changer
Main Spindle 13,000 RPM (100 HP/Big Plus) ATC 60 Chain Formula, Column 300mm-810mm Chiller Unit, Tool length measurement function Manual pulse separation type (1 piece) Ball Screw shaft core cooling (X-Y,Z Axis) Mist Collector (CR-1500K) Coolant temperature Control (Chiller) Coolant Gun, High Pressure Flood Coolant (15 kgf) Shower Coolant, High Pressure Spindle through Coolant (155 kgf) Cover Coolant, Operator door interlock (with lock mechanism) Automatic power cutoff
3 Stage Signal Light, Additional Lighting Overall Cover, Closed Type Whole Force Bar Chip Conveyor (sideways Right, CONSEP Specification) One-way appointment (GB-60) Cylindrical Interpolation Circle between complementary arcs
3 Compensation Primary Cylinder Re-Circle Smooth Interpolation, NURBS Structure Drilling Fixed Cycle Programmable Mirror Image, Data Input (G10) Optional Block Skip, Stroke Check before Movement Store Program Stroke Check 2 Program handle Interrupt

Page 3 of 3

EQUIPPED WITH:
Manual handle interrupt
Sequence number collation stop
Rigid Tap, Tool Position offset (G45 to G48) 3D Tool Correction Tool Correction amount memory Tool Correction number 32 pairs Tool correction number 99 paurs Scalable Plastic Number of registered programs 120 Leader/puncher interface External work number Data server (2 GB) hard disk Embbeded Ethernet Program storage capacity 64 Kbytes Recommended CNC package option 2 Automatic centering function (wireless RMP 60) Scale feedback (IE, Y-Axis) Vacuum piping and completion set for side modifications Vacuum piping is a cable pair Side Conveyor (with Bucket) Side Packet capacity up Side Cover Coolant Tool tip point for 5-Axis mechanism Clamp Mechanism for shaft machining Program Capacity UP (1 MB) Specified color is the old Mazak Standard (White & Blue) Because the step block is low, special order creation 1 000x1000x4500
