WARNER & SWASEY 2A M3470برج مخارط (رام والسرج)

بطاقة الهوية
415097
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1964
رقم المسلسل
1969602
الموقع
Texas
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
L630452
9602 1
صور ( 4 )
بطاقة الهوية
415097
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1964
رقم المسلسل
1969602
الموقع
Texas
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
L630452

الوصف

2 A Used Warner & Swasey Square Head Saddle Type Turret Lathe Ref.#L630452 Model: 3470 Lot 51 Serial No. 1969602 New: 1964 Swing Over Bed Ways 20-1/2" Swing Over Cross Slide Carriage 16" Center Distance 43" Spindle Hole 3-3/4" Spindle Nose A - 11 Spindle Speeds 32 To 1117 Rpm's Chuck Size 15" 4- Jaw Feeds Cross .0025 To .082 I.P.R. Feeds Long. .005 To .167 I.P.R. Main Motor 20 / 40 Hp. 440 Volts Flange Holders Short 2 Flange Holders Long 2 Slide Tool Holders 1 Weight 12,500 Lbs. Floor Space 144" L. X 83" W. Machine Height 64" Coolant Yes Tool Post 4 Way On Front Carriages Yes Rapid Traverse Front & Rear Carriages Yes Fixed Rear Turret Yes Note: Machine Has Had Both Aprons And Rapid Traverse Boxes Reconditioned. New Feed And Rapid Shafts. Head Stock Has Been Flushed And New Oil And Filters. Machine Has Been Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice Condition: Very Good

المواصفات

تحويل المواصفات للمتري
الأرجحة
20 "
نوع
Saddle
الأبعاد
83"X 144"
الوزن
12500 lbs.

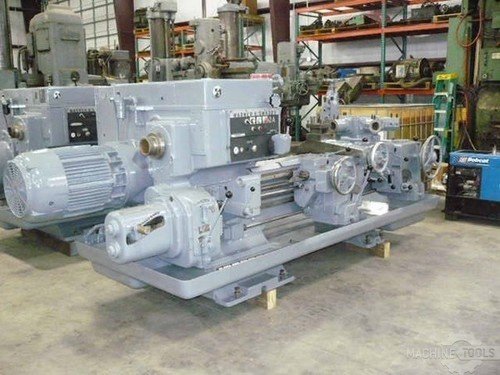

2 A Used Warner & Swasey Square Head Saddle Type Turret Lathe
Ref.#L630452
Model: 3470 Lot 51
Serial No. 1969602
New: 1964

Swing Over Bed Ways 20-1/2"
Swing Over Cross Slide Carriage 16"
Center Distance 43"
Spindle Hole 3-3/4"
Spindle Nose A - 11
Spindle Speeds 32 To 1117 Rpm's
Chuck Size 15" 4- Jaw
Feeds Cross .0025 To .082 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 20 / 40 Hp. 440 Volts
Flange Holders Short 2
Flange Holders Long 2
Slide Tool Holders 1
Weight 12,500 Lbs.
Floor Space 144" L. X 83" W.
Machine Height 64"
Coolant Yes
Tool Post 4 Way On Front Carriages Yes
Rapid Traverse Front & Rear Carriages Yes
Fixed Rear Turret Yes
Note: Machine Has Had Both Aprons And Rapid Traverse Boxes Reconditioned. New Feed And Rapid Shafts. Head Stock Has Been Flushed And New Oil And Filters. Machine Has Been Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice.

Condition: Very Good

Price: $Please Call
