HAAS HRTA6مناضد، دوارة

بطاقة الهوية
415306
علامة تجارية
موديل
رقم المسلسل
212196
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
5810
الثمن
Bg 5810
صور ( 6 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على HAAS HRTA6 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
415306
علامة تجارية
موديل
رقم المسلسل
212196
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
5810
الثمن

الوصف

Air Collet Closer.

المواصفات

الوزن
165 lbs.

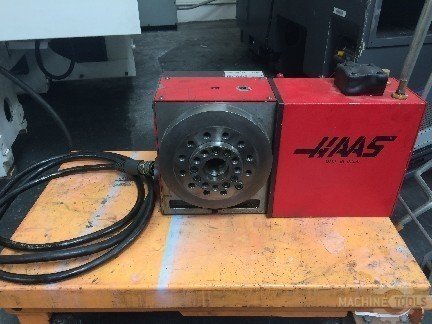

Haas HRTA6 Rotary Table Indexer Brushless Servo A1-6 Spindle Nose 210- ft-lb Torque Air Collet Closer.

Stock No. 5810
Serial #: 212196
Location: Fullerton, CA.

Diameter A1-6 Spindle Nose
Spindle Speed 0.001 - 60 °/sec
Max. Torque 210 ft-lb
Center Height 6.000 ± 0.001"
Resolution 0.001 °
Max. Rotation/Step 999.999 °
Worm Gear Diameter 6.30"
Gear Ratio 90:1
Timing Belt 2:1
Duty Cycle Full/Low Speed 50% / 100%
Operating Temp 100° F (max. ambient)
Power Required (VAC) 115 ± 15% @ 15 amps
Max. Air Pressure 120 PSI
Weight 165 lbs.

Equipped With:
Air Collet Closer.

Price …………………… $4,750.00

PLEASE SEE TERMS AND CONDITIONS BELOW
TERMS AND CONDITIONS OF SALES
Unless otherwise arranged, 10% cash (non-refundable) with order, balance prior to shipment of machine. Title does not pass until machine has been paid for in full. There are no warranties by ACT Machinery as to compliance with any requirements of Federal, State and Local laws and industrial codes, including, without limitation, the Occupational Safety and Health Act of 1970 and all amendments thereto. It is the buyer’s duty to inspect all machinery, to provide proper safety devices and equipment or means that may be necessary to safeguard the operator from harm and to safeguard each machine and equipment to meet all government standards, including the Occupational Safety and Health Act of 1970. Specifications are approximate, not binding and meant as a guide only. We reserve the right to correct typographical errors. It is the purchaser’s responsibility to verify specifications and dimensions. All machines offered subject to prior sale and for acceptance within ten days from date of quotation. Prices subject to change without notice. Orders are not subject to cancellation except by written mutual consent. All equipment sold “AS IS” with no guarantees expressed or implied. It is further understood and agreed this buyer or subsequent buyers will hold vendor harmless for causes of action whatsoever. This agreement constitutes the entire contract of sale of the goods named herein. No modification of this contract shall be binding upon Seller unless in writing and signed by an authorized officer of Seller.
