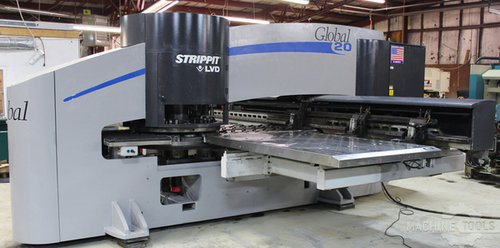

STRIPPIT GLOBAL 1225برج اللكمات

بطاقة الهوية
415428
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2001
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
28043

الوصف

Strippit Global 1225/20 CNC Turret Punch Machine, 2001, Thin Tooling, 3 Auto Indexing Stations Fanuc 180i CNC Control Huge Sheet Size! Maximum Standard Sheet Size: 50” x 100” Year of Manufacture: 2001 Machine is in Very Good Condition 3 LARGE 3 1/2" AUTO-INDEX STATIONS Huge Sheet Size! Maximum Standard Sheet Size: 50” x 100” Maximum Sheet Size with Progressive-Move: 50” x 196" Maximum Sheet Size, Prog-Move & Short Work clamps: 60" x 196" Machine has Third-Work clamp Option to Handle Very Large Sheets Very Fast! 350 hits per minute on 1.0" Centers 900 hits per minute on . 062" Centers Finished Part Accuracy .004" Maximum Punch-Tonnage: 23 Tons Maximum Material: .250” mild steel Hole Capacity: 1.169" in .250" mild steel, 3.500" in .074" mild steel 30 STATION TURRET, Standard Strippit Thin-Turret Tooling Type, Configured as; 26 -- 1 1/4" STATIONS 4 LARGE 3 1/2" STATIONS Heavy-duty Machine Weights 36,400 Pounds Machine Works Best on 460 / 480 volts AC Power Machine is Currently Under-Power. Global 1225/20 CNC Turret Punch Machine Quote approximate machine can be inspected. Turret Dimensions: Width 102” aprox. x Height 96”x Depth 220” Weight 34410 lbs.

المواصفات

تحويل المواصفات للمتري
حمولة
23 T
محطة تارت#
30

Strippit Global 1225/20 CNC Turret Punch Machine, 2001, Thin Tooling,
3 Auto Indexing Stations

Fanuc 180i CNC Control
Huge Sheet Size! Maximum Standard Sheet Size: 50” x 100”
Year of Manufacture: 2001
Machine is in Very Good Condition
3 LARGE 3 1/2" AUTO-INDEX STATIONS
Huge Sheet Size! Maximum Standard Sheet Size: 50” x 100”
Maximum Sheet Size with Progressive-Move: 50” x 196"
Maximum Sheet Size, Prog-Move & Short Work clamps: 60" x 196"
Machine has Third-Work clamp Option to Handle Very Large Sheets
Very Fast! 350 hits per minute on 1.0" Centers
900 hits per minute on . 062" Centers
Finished Part Accuracy .004"
Maximum Punch-Tonnage: 23 Tons
Maximum Material: .250” mild steel
Hole Capacity: 1.169" in .250" mild steel, 3.500" in .074" mild steel
30 STATION TURRET, Standard Strippit Thin-Turret Tooling Type,
Configured as; 26 -- 1 1/4" STATIONS
4 LARGE 3 1/2" STATIONS
Heavy-duty Machine Weights 36,400 Pounds
Machine Works Best on 460 / 480 volts AC Power
Machine is Currently Under-Power.
Global 1225/20 CNC Turret Punch Machine
Quote approximate machine can be inspected.
Turret Dimensions: Width 102” aprox. x Height 96”x Depth 220”
Weight 34410 lbs.
