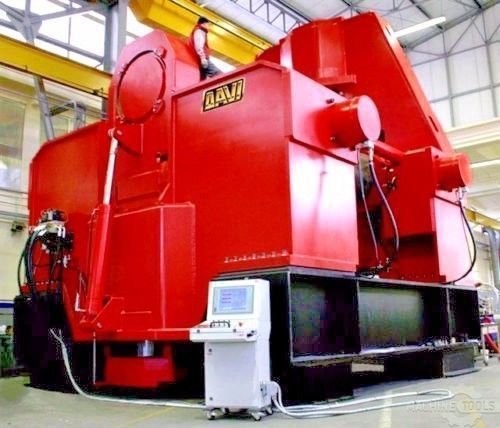

DAVI MAV 30130لوحة رولز الانحناء بما في ذلك قرصة
الولايات المتحدة الامريكية

الممزيد حول هذا النموذج
لعرض مزيد من المعلومات على DAVI MAV 30130 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .
الولايات المتحدة الامريكية
الوصف
المواصفات
Model: MAV 30130
Rated Maximum Bending Thickness ...... 8" x 10'
Max. Pre-Bending Thickness ........... 7" x 10'
Re-Rolling Mode ...................... 4.9" x 10'
Top Roll Diameter .................... 50"
Side Roll Diameters .................. 44"
Rolling Speed ........................ Up to 20'/min
Main Motor (Combination of 3 Rolls) .. 450 HP
EQUIPPED WITH:
DAVI "MAV-GENIUS-PRO" CNC Control
Cone Rolling (All three rolls can be tilted)
Electronic Automatic Balancing System
Low Frame Design (Permits rolling small diameter cones)
Permanent Lubrication Technology
Independant Motors on Each Roll
All three motors directly splined on the rolls shaft
