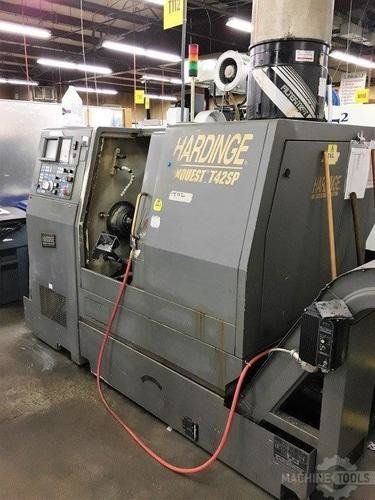

HARDINGE CONQUEST T42SPمخارط CNC

بطاقة الهوية
418383
علامة تجارية
موديل
النوع
السنة
2000
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
156771
الثمن

الوصف

21.2" Swing 13.9" Centers Hardinge Conquest T-42SP CNC LATHE, Fanuc 18T, 16C Collet, Parts Catch, Tail, Chip

المواصفات

تحويل المواصفات للمتري
سعة العامود
1.625 "
أكسات
2
القدرة
15 hp
ماكس RPM
6000 rpm
الأرجحة
21.2 "
بالقطع طول
17.5 "
غراب
Yes
CNC تحكم
CNC (FANUC 18TC)

HARDINGE T42 MS (4) AXIS TURNCENTER
w/Sub-Spindle, Live Tooling w/ Full “C” Axis

1997 – Truly Excellent Condition
CATALOGUE SPECIFICATIONS:

MAXIMUM SWING 21.2"
MAXIMUM TURNING DIAMETER 9"
MAX. DISTANCE BETWEEN SPINDLES 13.1"
X AXIS TRAVEL 5.31"
Z AXIS TRAVEL (W/COLLET) 13.9"
C AXIS MINIMUM INCREMENT 0.001º
B AXIS TRAVEL (SUB SPINDLE) 11.5"
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 630 IPM
RAPID TRAVERSE RATE B AXIS 300 IPM
SPINDLE NOSE (MAIN & SUB SPINDLE) A2-5
MAX. BAR CAPACITY 2”
SPINDLE SPEEDS (MAIN SPINDLE) 50 - 5,000 RPM
SPINDLE SPEEDS (SUB SPINDLE) 80 - 6,000 RPM
SPINDLE MOTOR (MAIN / SUB SPINDLE) 10 HP / 5 HP
TURRET CAPACITY 12 STATIONS
LIVE TOOLING SPEEDS 4,000 RPM
LIVE TOOLING MOTOR 2.4 HP
APPROX. DIMENSIONS (INCL CHIP) 125" x 70" x 67"
MACHINE WEIGHT (APPROX) 10,000 LBS

EQUIPPED WITH:
w/ Fanuc 18-T Control
C-Axis Main & Sub Spindle
12 Station Driven Tool Turret
(2) Face Driven Tools
(2) OD Driven Tools
Static Tooling Package
(24) Collets
20-C Main Spindle Collet Ready
16-C Sub Spindle Collet Ready
Parts Catcher
Turbo Chip Conveyor
Coolant System
All Available Manuals

Hardinge Harmatic 65 Bar Feeder
w/ 4 Tubes (1) ½ - inch, (2) 1 ½ - inch, & (1) 2 – inch

FOR MORE INFORMATION: Call Mike at 973-497-7540
