ARBURG 270V 500-150ماكينات حقن اسطمبات

بطاقة الهوية
418388
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1997
الموقع
المانيا
رقم المخزن
DE-INJ-ARB-1997-00001

الوصف

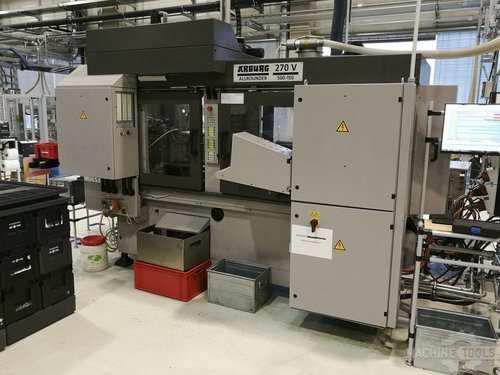

This Arburg 270V 500-150 Injection Moulding Machine was built in 1997 in Germany and has been active for 106863 production hours. With an Arburg control unit, the machine also includes hydraulic drive and stands in excellent conditions. Main material handled with this machine is plastic.

المواصفات

Arburg 270V 500-150 Injection Moulding Machine

Production Hours: 106863

General Data:
Measurements width: 3615 mm
Measurements depth: 2085 mm
Measurements height: 1990 mm
Machine weight: 2250 kg
Automatic cycles: 13520148
Type of drive: Hydraulic
Closure: Hydraulic

Control Unit:
Brand: Arburg

Injection Unit:
Heating capacity: 4 x 1.2 kW
Adjustable heating zones: 4
Nozzle pressure: 60 kN

Clamping Unit:
Clamping force: 500 kN
Opening stroke: 350 mm
Max open daylight: 550 mm
Distance between bars: 320 mm
Size of mold platens: 405 mm
Ejector stroke: 125 mm
Ejector force for / back: 30 kN

Media:
Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 24.7 kVA
Oil tank: 160 L
