LISSMAC SMB-M 1000 B2-60ماكينات تنظيف

بطاقة الهوية
418547
علامة تجارية
السنة
2012
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
10992

المواصفات

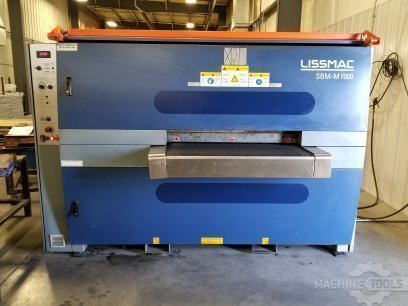

LISSMAC SBM-M 1000 B2-60 DEBURRING MACHINE
MFG:2012
REPLACEMENT PRICE APPROX:$110,000.00

SBM-M B2 USA
working width max. 1000 / 1500 mm (40 / 60 inch)
workable material thickness 1.0-20 mm (0.04-0.79 inch)
voltage 480 V / 60 Hz
network structure 3~ PEN / 3~ PE+N
total power 37 A
total current consumption 26 kW
insulation class IP 42
infinitely variable feed speed 0-4 m/min. (0-13 ft/min)
adjustment of material thickness electric
adjustment of tools electric
weight approx. 2000 / 2300 kg (4,409 / 5,071 lbs)
dimensions (W/D/H ) approx. 2600/1400/1800 mm
(102/55/71 inch)
3100/1400/1800 mm
(122/55/71 inch)

Oxide removal in one single pass on all inside and outside edges of sheet

and plate up to 20 mm material thickness
No need to turn sheets over and running them through the machine again
Up to 60 % work time savings compared to one-side processing brush

machines
Highest quality during subsequent processing or finishing
Simultaneous brushing of interior and exterior contours
All sharp edges blended
Improved surface quality from removal of rust, scale and dirt
Protective oil film remains intact
The cross-machining principle guarantees optimum tool utilisation over the

entire working width.
Simple, intuitive operation
Faster and simpler tool change within just a few minutes
Modular and compact in modern machine design - smaller footprint
Improved work environment - Reduction of dust, dirt and noise
Optionally available: Conveyor Technology; Handling Systems, Automation;

Custom Solutions
