COOPER WEYMOUTH PETERSON 6R-36 / 30HDD7 / 30PTT21 / SMX-30Hخطوط تغذيه البكر

بطاقة الهوية
418575
علامة تجارية
موديل
6R-36 / 30HDD7 / 30PTT21 / SMX-30H
حالة
مستعملة - جيد
السنة
2001
الموقع
Michigan
الولايات المتحدة الامريكية
رقم المخزن
10359
10359a
صور ( 2 )
بطاقة الهوية
418575
علامة تجارية
موديل
6R-36 / 30HDD7 / 30PTT21 / SMX-30H
حالة
مستعملة - جيد
السنة
2001
الموقع
Michigan
الولايات المتحدة الامريكية
رقم المخزن
10359

المواصفات

تحويل المواصفات للمتري
أقصى وزن للملف
20,000 lb
أقصى عرض للملف
30 "
أقصى قطر للملف
60 "
أقصى سمك
125 "

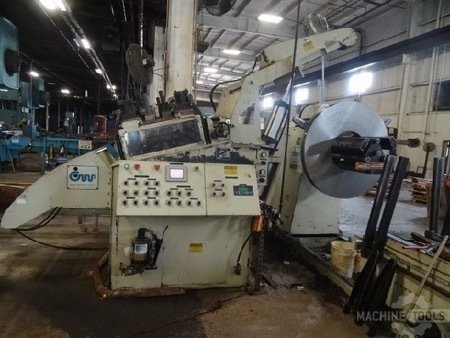

(1) Pre owned 20,000 Lbs x 30" Wide x .125" CWP Servo Feed Line

Specification:
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 30"
Stock thickness capacity: .125" x 30"
Stock thickness capacity: .187" x 24"
Expansion range: 15.5" - 20.5"
Coil OD: 60"
Serial no.: C2134-5

Equipped With:
CWP Coil Reel Model No.: 6R-36
Three leaf mandrel
Coil keeper arms
Hydraulic mandrel expansion
Threading drive for jog forward and reverse
Drag brake with adjustable tensioning
Traveling coil load car
Powered lift and travel
Narrow coil supports on coil car
Coil car track

CWP Powered Straightener, Model No.: 30HDD7
Entry and exit pinch rolls with air operated adjustments
Seven straightening rolls with heavy duty upper roll adjustments
Back up support rollers on all straightening rolls
Inclined head
Exit cascade loop support rollers
Adjustable stock width edge guides (hand crank)
Coil hold down arm with motorized end wheel
Stock threading table with peeler extension
Automatic lubrication system
Variable speed payout
Operator's control station
Jog forward and reverse
Auto / Run cycle
Ultrasonic variable speed loop control system

Exit Threading Tables Model No. 30PTT21
Dual side "bomb bay door" style
Air operated adjustment

Servo Roll Feed Model No.: SMX-30H
Air operated upper roll lift / pilot
Anti-back up roll assembly (air operated)
Adjustable stock width edge guides (hand crank)
Entry cascade loop support rollers with top trap roll
Free standing base with adjustable pass line height
AC servo drive and controls
Job memory, micro adjust, batch count, etc.
Pilot pin mode
Free standing sloped front control console
Remote pendant control for jog forward and reverse
Fused disconnect
