FINN-POWER E5 SBUبرج اللكمات

بطاقة الهوية
419086
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1999
الموقع
الهند
رقم المخزن
IN-PUN-FIN-1999-00001

الوصف

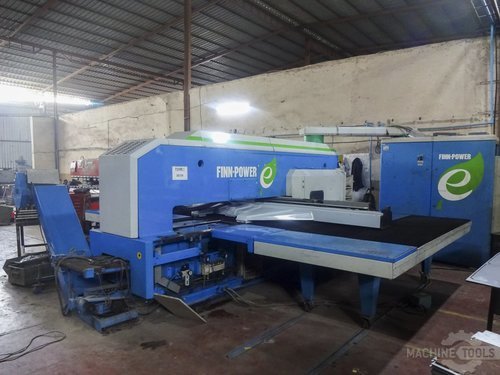

This Finn-Power E5 SBU Turret Punching Machine was manufactured in 1999 in Finland, and has a record of 40800 production hours. Operated through a Siemens control unit, the machine stands in good working conditions and comes with an electrical panel as additional equipment. In the past, this punching machine has handled mostly mild steel of up to 2.5 mm of thickness, aluminium of up to 6 mm and copper of up to 5 mm, and produced control panels and UPS cabinets for the electrical industry.

المواصفات

تحويل المواصفات للمتري
حمولة
20 T
CNC تحكم
CNC (SIEMENS SINUMERIK)

Finn-Power E5 SBU Turret Punching Machine

Production Hours: 40800

General Data:
Measurements width: 2750 mm
Measurements depth: 5000 mm
Measurements height: 2430 mm
Machine weight: 12700 kg

Control Unit:
Brand: Siemens

Main Drive:
Punching force: 200 kN
Maximum sheet thickness: 3 mm

Movement:
X-Axis Movement: 1250 mm
Y-Axis Movement: 2500 mm

Table:
Max punching diameter: 45 mm

Tools:
Number of index: 3
Number of station: 52

Max Material Thickness:
Steel: 4 mm
Stainless steel: 2 mm
Aluminium: 6 mm

Media:
Main electronic connection: 400 V
Power consumption: 25 kVA
Air pressure: 6 bar

Additional Equipment:
* Electrical panel
