COHERENT METABEAM 400قاطعات الليزر

بطاقة الهوية
419525
علامة تجارية
موديل
السنة
2014
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
11002
11002
صور ( 6 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على COHERENT METABEAM 400 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
419525
علامة تجارية
موديل
السنة
2014
الموقع
New York
الولايات المتحدة الامريكية
رقم المخزن
11002

المواصفات

تحويل المواصفات للمتري
ورقة-W
48 "
ورقة-L
48 "
وات
400 w
بوصة فى الدقيقة IPM
2000 inpm
حركة X
48 "
حركة Y
48 "
حركة Z
12 "

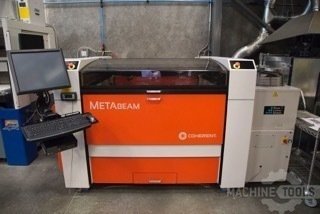

400 WATT COHERENT METABEAM 400 CO2 ADVANCED LASER MACHINING CENTER
MFG:2014 - 80 HOURS

The MetaBEAM 400 is a compact laser cutting system with a cutting
area of 48" x 48" (1.23m x 1.23m) and 12" (300 mm) of Z travel.
It is capable of cutting stainless steel, mild steel, aluminum,
titanium as well as plastics and organics. The MetaBEAM 400
incorporates Coherent's low maintenance, sealed, pulsed CO2 laser
- the Diamond E-400 - that has fast rise time, high peak power
pulse (typically 3x above the average power) and excellent beam
quality for high quality, clean cutting. This pulsed, sealed
laser has capabilities like a laser twice its size, is efficient
and has low operating costs. The high peak power, square pulse
and excellent mode means that it quickly vaporizes material and
produces a clean narrow cut.

MetaBEAM Features:
High power and low operating cost
Capacitive auto-focus for precise nozzle gap
Auto-focus for all non-metallic materials
Part collection drawer
Metal slats or honeycomb pallets
High pressure adjustable coaxial assist gas jet
Gull wing, dual access doors
Removeable pallet, front and rear pass through
Processing Capabilities:
Stainless Steel up to 1.5 mm
Aluminum up to 1.5 mm
Plastics and Wood up to 25 mm

Laser Power/Peak Power (W) - 400
Dimensions (LxWxH) - 1630 x 1990 x 1320mm
(64.2 x 78.4 x 52.0in)
Weight - 1600 lbs
Cutting Height - 40.0 in
Working Range-
x = 48.0 in
y = 48.0 in
z = 12.0 in

Maximum Speed-
2000 in/ min. cutting
3600 in/min. rapid positioning
3600 in./min. raster engraving

Positioning - Linear encoders with 2 micro resolutions in closed
loop with brushless servo motors

Accuracy - 0.001 in. positioning accuracy
0.0002 in. repeatability

Contouring - Full look ahead countouring capability

Materials - metal, plastic, wood, paper, composites, fabric &
rubber

Includes: HMI workstation and all original accessories. // A
Precise Cooling Solutions AP2A02 chiller.
