BROTHER TC-32B QTمراكز التخريم و القلوزة

بطاقة الهوية
419718
علامة تجارية
موديل
السنة
2006
الموقع
Colorado
الولايات المتحدة الامريكية
رقم المخزن
396497

الوصف

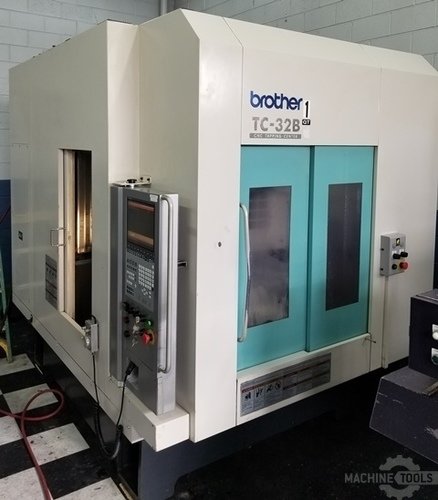

Brother TC-32BQT, B00 cntrl, 2006, Dual trunnion tables, 26 ATC, QT, 16k RPM

المواصفات

تحويل المواصفات للمتري
X
21.6 "
Y
15.7 "
Z
16.3 "
RPM
16000 rpm
الأبعاد
75" x 145' x 93" Ht.
الوزن
10,000 Lbs.
CNC تحكم
CNC (Brother CNC B00)

General Specifications As Per Brochure (Buyers are responsible for confirming

all details below)

Dual 5-axis Trunnion tables, one mounted per side

Equipped With:
Brother CNC-B00 CNC Control w/ G-Code & Conversational
(2) 5-Axis Trunnion tabels
Tool Touch off Probe
RS232 Port
BT-30 Taper
ATC Swing Arm/26 Tool Magazine
2-Pallet Quick Table (3.4 Second Pallet Change Time)
Complete Covers & Safety Door Interlock System
Instructional & Programming Manuals
Manual Pulse Generator
Work Light

******Just Over 5,600 Cutting Hours******

Specifications:
X-Axis Travel: 21.6"
Y-Axis Travel: 15.7"
Z-Axis Travel: 16.3"
Work Area Size: 23.6" x 16.7"
Load Capacity (Uniform Load): 441 lbs
Turning Diameter: 47.2"
Table Positioning Time: 3.4 Second
Table Change Repeatability: 0.0004"
Spindle:
Spindle Speed: 16,000 RPM
Feed Rate:
Rapid Traverse Rate (X,Y,Z): 2,756 RPM
Cutting Traverse Rate: 0.04 - 7.87.4 IPM
ATC Unit:
Tool Diameter: 1.2" - 7.9"
Tool Length: 7.9"
Tool Weight: 7.7 lbs
Motor:
Main Spindle Motor: 13/10 HP

Machine: 74.5" x 123.5" x 93" 9,920 lbs
Chip/Coolant Pan: 67" x 63" x 30" 1,500 lbs
