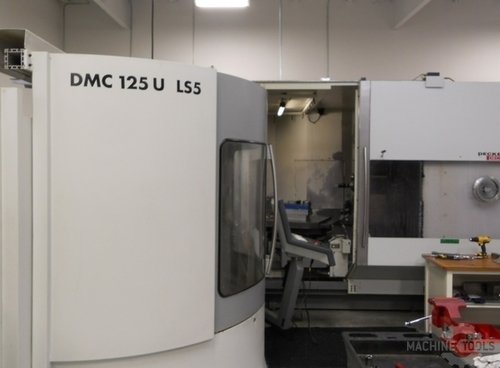

DECKEL MAHO DMC 125Uمراكز تصنيع عالمية

بطاقة الهوية
419854
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2002
الموقع
Illinois
الولايات المتحدة الامريكية

الوصف

39" x 31.5" pallets DMG Deckel Maho DMC 125 U 5 Axis Machining Center (2002) 5 Axis, Universal milling head B & G Axis, Pallet Shuttle, HEIDENHAIN Mill Plus CNC Specifications and Equipment Pallet area (2-pallets): 39" x 31.5"(800 x 1000mm) X-Axis Travel: 1124mm Y Axis Travel: 880mm Z-Axis Travel: 800mm B Axis Movement: Universal milling head B & G axis G Axis Movement: Universal milling head B & G axis Spindle Taper: HSK63A Speed Range: 18,000 rpm Tool Changer Positions: 180 Equipped With: 5 Axis articulating universal milling head B & G Axis, HEIDENHAIN mill plus CNC, Schuller 7 pallet changer system, 3D probe system- infrared type Chip conveyor, Spindle cooling/chiller unit, Chip washing gun, Misc tool holders as shown included almost a full changer load. Machine total on time hrs 49,782 ,hrs,6,956 of spindle run time as of 9/25/17

المواصفات

تحويل المواصفات للمتري
X
49.21 "
Y
31.5 "
Z
31.5 "
الأكسات#
5
RPM
18000 rpm
# ATC
180
الجدول-W
39.37 "
الجدول-L
31.5 "
انحناء
HSK
CNC تحكم
CNC (Heidenhain Mill plus)

39" x 31.5" pallets DMG Deckel Maho DMC 125 U 5 Axis Machining Center (2002)


5 Axis, Universal milling head B & G Axis, Pallet Shuttle, HEIDENHAIN Mill Plus CNC

Specifications and Equipment

Pallet area (2-pallets): 39" x 31.5"(800 x 1000mm)
X-Axis Travel: 1124mm
Y Axis Travel: 880mm
Z-Axis Travel: 800mm
B Axis Movement: Universal milling head B & G axis
G Axis Movement: Universal milling head B & G axis
Spindle Taper: HSK63A
Speed Range: 18,000 rpm
Tool Changer Positions: 180
Equipped With: 5 Axis articulating universal milling head B & G Axis, HEIDENHAIN mill plus CNC, Schuller 7 pallet changer system, 3D probe system- infrared type Chip conveyor, Spindle cooling/chiller unit, Chip washing gun, Misc tool holders as shown included almost a full changer load. Machine total on time hrs 49,782 ,hrs,6,956 of spindle run time as of 9/25/17
