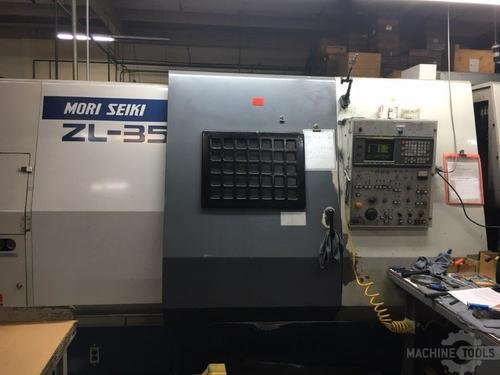

MORI SEIKI ZL-35B/750مخارط CNC

بطاقة الهوية
419911
علامة تجارية
موديل
النوع
السنة
1994
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
156937
الثمن

الوصف

23.6" Swing 35.04" Centers Mori Seiki ZL-35B/750 CNC LATHE, Fanuc 16TT, 4-axis, 12"chk., Tailstck, Chip Conv

المواصفات

تحويل المواصفات للمتري
حجم الظرف
15 "
سعة العامود
3.7 "
أكسات
4
القدرة
40 hp
ماكس RPM
3000
الأرجحة
28.1 "
بالقطع طول
29.3 "
غراب
yes

MORI-SEIKI 4-AXIS CNC LATHE

MODEL: ZL-35B/750  INSTALLED: 4/1994



SPECIFICATIONS:

SWING OVER BED ........................ 23.6"

SWING OVER CROSS SLIDE ................ 16.7"

DISTANCE BETWEEN CENTERS .............. 35.04"

MAX. TURNING DIAMETER ................. 15.35"

MAX. TURNING LENGTH ................... 30.71"

TRAVEL:

X-AXIS UPPER .......................... 8.86"

X-AXIS LOWER .......................... 8.27"

Z-AXIS UPPER .......................... 33.66"

Z-AXIS LOWER .......................... 33.66"

SPINDLE:

SPINDLE SPEED ......................... 9-2500 RPM

SPEED RANGES .......................... 2

SPINDLE NOSE .......................... A2-8

HOLE THROUGH SPINDLE................... 4.13"

FRONT BEARING ID ...................... 6.3"

TURRET:

NUMBER OF TURRETS ..................... 2

UPPER TURRET........................... 10 POSITION

LOWER TURRET........................... 10 POSITION

SHANK HEIGHT OF SQUARE CUTTING TOOL ... 1" DIA.

SHANK DIAMETER OF BORING BAR .......... 2" DIA.

RAPID TRAVERSE RATE ON X-AXIS.......... 472 IPM

RAPID TRAVERSE RATE ON Z-AXIS.......... 590 IPM

TAILSTOCK:

TAILSTOCK TRAVEL ...................... 33.66"

DIAMETER OF TAILSTOCK QUILL ........... 4.33"

TAPER OF TAILSTOCK SPINDLE ............ MT 4

TAILSTOCK QUILL STROKE ................ 3.94"

MAIN MOTOR............................. 30/22 HP AC

APPROXIMATE DIMENSIONS ................ 208"x79"x90"

APPROXIMATE WEIGHT .................... 24,200 LBS



EQUIPPED WITH:

  - FANUC 16TT CNC CONTROL

  - 12" 3-JAW HYD. CHUCK

  - 10 POSITION UPPER AND LOWER TURRET

  - TAILSTOCK

  - CHIP CONVEYOR

  - ALL AVAILABLE TOOLHOLDERS

  - ALL AVAILABLE MANUALS



VIDEO LINK: https://youtu.be/Q5fuCXfoaXA

FOR MORE INFORMATION: Call Mike at 973-497-7540
