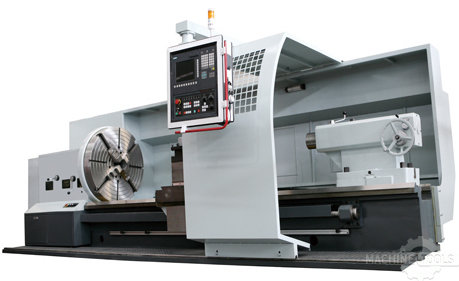

ACCUT L-1000/2000CNCمخارط CNC

بطاقة الهوية
419924
علامة تجارية
موديل
النوع
حالة
الجديد في المخزن
السنة
2017
الموقع
Shandong
الصين
عودة السياسة
60 يوم

الوصف

● Great value and reliability with many standard features to simply operation and increase productivity. ● Extra wide 400mm bed maximizes support for saddle and cross slide assembly for smooth machining, even of large work pieces. ● Variable AC spindle drive motor for exceptional machining power. ● Automatic three range headstock allows full horsepower at low rpm for more efficient machining of parts requiring low spindle speed. ● Control rides on a rail and can be positioned for maximum operator convenience. ● Heavy-duty construction with cast iron base. ● Ball screws for the X and Z axes are mounted in precision compound bearings for smooth operation and accurate positioning, driven by servo motor. ● Anti-friction Turcite-B coating between saddle and bed ways to reduce friction, superior dampening properties for chatter free machining and minimizes bed wear to extend machine life. ● Fully enclosed, interlocking guarding to maintain a clean working environment and allow a high rate of chip removal. Automatic lubrication system maintains proper lubrication of slide ways and ball screws.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
236.2 "
سعة العامود
5.1 "
أكسات
2
القدرة
30 hp
ماكس RPM
500 rpm
قطر الخراطة
236.2 "
الأرجحة
39.37 "
بالقطع طول
236.2 "
غراب
Yes
الأدوات الحية
No
الفرعية المغزل
No
الوزن
21000kg
CNC تحكم
CNC (Siemens/Fanuc)

Unit L-1000
Max. swing over bed mm 1000
Bed width mm 755
Max. length of workpiece mm 1500-6000
Max. swing over slide 630
X axis travel mm 520
Z axis travel mm 1500-6000
Spindle nose mm A2-15
Chuck size mm 1000
Taper of spindle bore 1:20
Spindle bore mm 130
Spindle speed rpm 2~87, 5~201, 11~500
Steps of spindle speed 3-stpes, actuator
Inverter-driven motor power kw 22/26
Rapid traverse X/Z m/min 6/8
Repeatability of tool post mm 0.008
Diameter of tailstock quill mm 200
Travel of taistock quill mm 300
Taper of tailstock M6
Net weigth kg 15000-21000
