AMADA VIPROS 255برج اللكمات

بطاقة الهوية
420016
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2005
الموقع
الهند
رقم المخزن
IN-PUN-AMA-2005-00002

الوصف

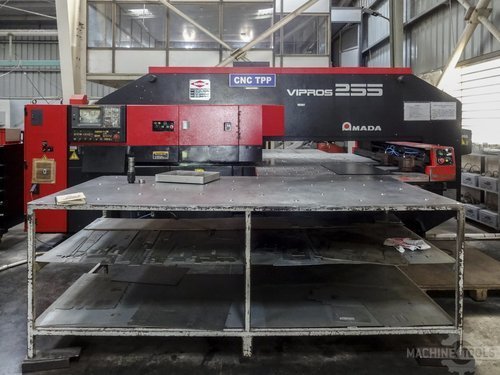

This AMADA Vipros 255 Turret Punching Machine from 2005 has an estimated working record of 39600 production hours. Operated through a FANUC 18-P control unit, this model offers low maintenance costs and the possibility of easily obtaining spare parts. In the past, this machine has been working mainly on mild steel (up to 4 mm thick) and stainless steel (up to 2 mm).

المواصفات

تحويل المواصفات للمتري
حمولة
22 T
محطة تارت#
31
CNC تحكم
CNC (FANUC 18P)

AMADA Vipros 255 Turret Punching Machine

Production Hours: 39600

General Data:
Measurements width: 2500 mm
Measurements depth: 5100 mm
Measurements height: 2100 mm
Machine weight: 9800 kg

Control Unit:
Brand: FANUC
Model: 18-P

Main Drive:
Punching force: 200 kN
Maximum sheet thickness: 4 mm

Movement:
X-Axis Movement: 1250 mm
Y-Axis Movement: 1270 mm

Tools:
Number of clamps: 2

Max Material Thickness:
Steel: 4 mm
Stainless steel: 2 mm
Aluminium: 2 mm

Media:
Main electronic connection: 415 V / 3 P
Power consumption: 27 kVA
Air pressure: 6 bar

Additional Equipment:
* Tools
