FERMAT WF 13أفقي نوع الدور مطاحن مملة

Wf 13
صور ( 1 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على FERMAT WF 13 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

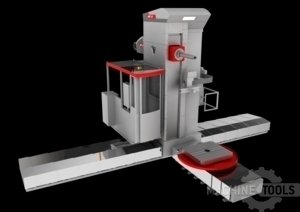

Horizontal Boring Mill WF 13 CNC represents the newest technology and concept of floor-type horizontal boring mills that are currently on the global marketplace. Thanks to the powerful headstock, high axial forces, excellent circular interpolation accuracy and high precision of the additional CNC Rotary Table, WF 13 can fulfill the needs of the most demanding customers. Because of its modern design, WF 13 is a universal boring and milling machine that allows efficient processing of large and heavy workpieces while utilizing high precision and quality of operation.


تحويل المواصفات للمتري
حجم عامود الدوران
5.118 "
X-Horiz TVL من العقيد
59.06 "
Y فير TVL من رئيس
66.93 "
49.6 hp
3000 rpm
عرض المنضدة الدوارة
62.99 "
طول المنضدة الدوارة
70.87 "
from 35.000
CNC تحكم
CNC (Heidenhain TNC 530, Fanuc 31i, Siemens 840D)

Machine Axes
Thanks to our modular design our customers can configure the machine to their requirements.
X-axis (column travel) from 2 300 mm to 7 800 mm - possibility to extend 500 mm or 1000 mm
Y-axis (headstock vertical travel) 1 700, 2 000 and 2 500 mm and
W-axis (spindle travel) 730 mm.

The additional CNC rotary table is offered in three dimensions
1 600 x 1 800 mm with maximum table load 15 tons
1 800 x 2 200 mm with maximum table load 15 tons
2 000 x 2 400 mm with maximum table load 20 tons
The V-axis (table travel) is offered from 1 500 to 6 200 mm

Control system: Heidenhain iTNC 530 / Fanuc 31i / Siemens 840D

Standard delivery time 5 months.

Contact me for price and more information.
