TRUMPF TRUMATIC 3000Lبرج اللكمات

بطاقة الهوية
420513
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2005
الموقع
بولندا
رقم المخزن
PL-PUN-TRU-2005-00001

الوصف

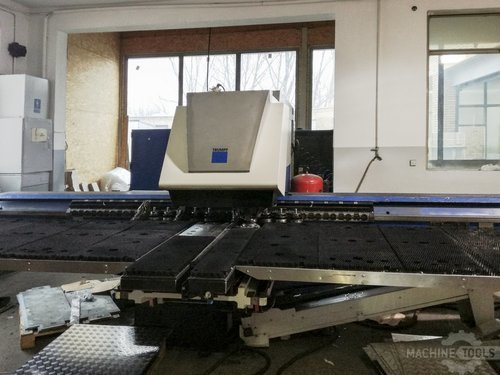

This Trumpf Trumatic 3000 L Laser Punch Combination Machine was manufactured in 2005 in Germany and has a working record of 31181 production hours. This fast and precise machine is operated through a Trumpf control unit and has mainly processed steel between 1 – 2.5 mm of thickness. Beside various tools, this machine comes with three adjustable workpiece holders.

المواصفات

تحويل المواصفات للمتري
حمولة
20 T
محطة تارت#
19
CNC تحكم
CNC (Siemens CNC Control)

Trumpf Trumatic 3000 L Laser Punch Combination Machine

Production Hours: 31181

General Data:
Measurements width: 6800 mm
Measurements depth: 2300 mm
Measurements height: 2100 mm
Machine weight: 13000 kg

Control Unit:
Brand: Trumpf

Main Drive:
Laser power: 2 kW
Punching force: 165 kN
Maximum sheet thickness: 4 mm
Laser brand: TruCoax 2000

Movement:
X-Axis Movement: 2175 mm
Y-Axis Movement: 1250 mm

Workpiece:
Workpiece weight: 120 kg

Tools:
Number of index: 2
Number of station: 19

Max Material Thickness:
Steel: 4 mm

Media:
Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 65 kVA
Chip conveyor: Yes

Additional Equipment:
* Tools
* 3x Adjustable workpiece holder
