ONA ONAMATIC 420ذاكرة الوصول العشوائي نوع الغطاس EDM

بطاقة الهوية
420556
علامة تجارية
موديل
ONAMATIC 420
حالة
مستعملة - جيد
السنة
1987
الموقع
اسبانيا
رقم المخزن
ES-EDM-ONA-1987-00001

الوصف

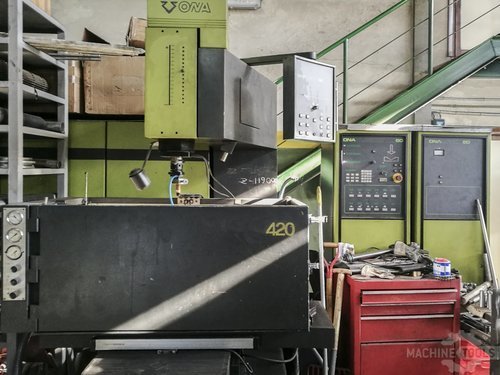

This ONA ONOMATIC 420 Erosion Machine from 1987 was manufactured in Spain and has a production history of approximately 15000 working hours. The machine is operated through an Ona Program 60 Control unit and underwent a complete retrofitting in 2002. This model stands out due to its work dimensions and the high capacity provided by two generators. In the past this machine processed materials like steel and copper for the automotive industry.

المواصفات

تحويل المواصفات للمتري
الجدول الحجم-W
15.75 "
الجدول الحجم-L
25.59 "
حركة الأكس X
15.75 "
حركة الأكس Y
23.62 "

ONA ONOMATIC 420 Erosion Machine

Production Hours: 15000

General Data:
Measurements width: 4530 mm
Measurements depth: 1630 mm
Measurements height: 2080 mm

Control Unit:
Brand: Ona
Model: Program 60

Movement:
X-Axis Movement: 400 mm
Y-Axis Movement: 600 mm

Workpiece:
Workpiece X: 400 mm
Workpiece Y: 650 mm
Workpiece weight: 1100 kg

Table:
Outer length: 400 mm
Outer width: 650 mm

Media:
Main electronic connection: 380 V / 50 Hz
Power consumption: 15 kVA

Additional Equipment:
* Electrode holder
